A good PCB layout for the ISO7140FCCDBQ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the isolation barrier. TI provides a recommended layout in the application note SLAA622.
To ensure reliable communication, use a reliable clock source, ensure proper signal termination, and implement error detection and correction mechanisms. Additionally, follow the recommended communication protocols and timing diagrams provided in the datasheet.
When selecting a power supply for the ISO7140FCCDBQ, consider the voltage range, current rating, and noise tolerance. Ensure the power supply can provide a stable voltage within the recommended range (1.71V to 5.5V) and can handle the device's current requirements (typically 10mA to 20mA).
To troubleshoot issues with the ISO7140FCCDBQ, start by verifying the power supply and clock signals. Check the device's configuration and communication protocols. Use oscilloscopes or logic analyzers to debug the signals. Consult the datasheet and application notes for troubleshooting guides and FAQs.
The ISO7140FCCDBQ has a maximum junction temperature of 150°C. Ensure good thermal design practices, such as using a heat sink or thermal pad, and follow the recommended thermal management guidelines in the datasheet. Consider using thermal simulation tools to optimize the design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7140FCCDBQ Overview

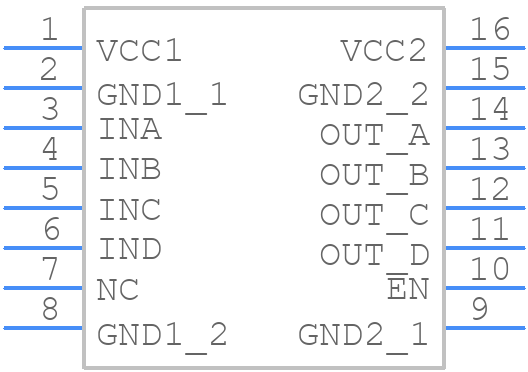

Use the download button to access the ISO7140FCCDBQ schematic symbol, PCB footprint, and 3D model.
