A good PCB layout for the ISO7141CCDBQ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the isolation barrier. TI provides a recommended layout in the application note SLAA622.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. TI recommends a maximum junction temperature of 150°C.
To minimize EMI and RFI issues, use a shielded enclosure, keep the device away from noise sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, ensure proper grounding and decoupling of the device.
To troubleshoot issues with the ISO7141CCDBQ, start by verifying the power supply and input signals. Check for proper voltage levels, signal integrity, and correct pin connections. Use an oscilloscope to analyze the signals and look for signs of noise or distortion. Consult the datasheet and application notes for guidance on specific troubleshooting steps.
The propagation delay of the ISO7141CCDBQ can impact system design, particularly in high-speed applications. Engineers should consider the delay when designing the system's timing and synchronization. TI provides guidance on propagation delay in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7141CCDBQ Overview

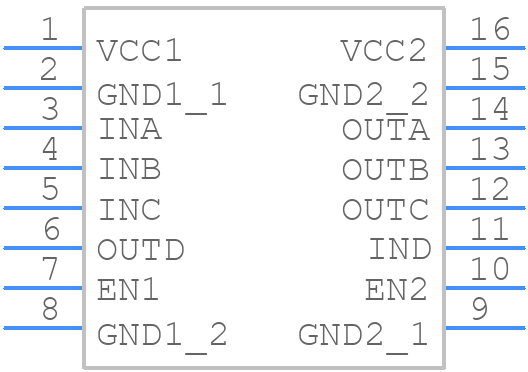

Use the download button to access the ISO7141CCDBQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO71,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
