Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing trace lengths. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation over the entire operating temperature range (-40°C to 125°C), it's crucial to follow proper thermal management practices, such as providing adequate heat sinking, using thermal vias, and selecting components with suitable temperature ratings. Additionally, consider using a thermally conductive material for the PCB and ensuring good airflow around the device.
Not using the recommended input and output capacitors can lead to reduced performance, increased noise, and potential instability. The capacitors help to filter out noise, reduce ringing, and ensure proper voltage regulation. Omitting or substituting these capacitors may require additional design efforts to achieve reliable operation.
The ISO721MMDREPG4 has built-in POR and BOR features to ensure reliable startup and operation. To handle these features, ensure that the power supply is stable and within the recommended voltage range during startup. Additionally, consider adding external circuitry to detect and respond to POR and BOR events, such as resetting the system or initiating a fault response.
The ISO721MMDREPG4 is susceptible to EMI and RFI, which can affect its performance and reliability. To minimize susceptibility, use proper shielding, grounding, and filtering techniques, such as using a metal shield around the device, adding EMI filters, and using a low-pass filter on the input and output lines.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ISO721MMDREPG4 Overview

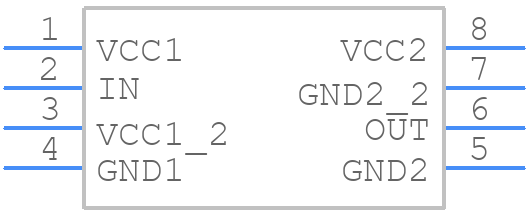

Use the download button to access the ISO721MMDREPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO72,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
