Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI.
To ensure reliable operation across the entire temperature range (-40°C to 125°C), it's crucial to follow the recommended operating conditions, including voltage and current limits, and to consider the device's thermal characteristics, such as junction-to-ambient thermal resistance.
The propagation delay of the ISO7220CDRG4 (typically around 10 ns) can impact system performance, especially in high-speed applications. Engineers should consider this delay when designing their system's timing and synchronization.
To avoid latch-up or other issues, it's essential to follow a controlled power-up and power-down sequence, ensuring that the supply voltage (VCC) is stable before applying input signals, and that input signals are removed before powering down.
The ISO7220CDRG4 has built-in ESD protection, but it's still important to follow proper ESD handling and storage procedures to prevent damage. Additionally, engineers should consider adding external ESD protection devices if their system requires it.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7220CDRG4 Overview

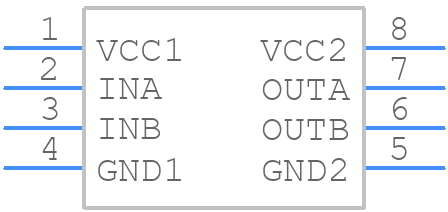

Use the download button to access the ISO7220CDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO72,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
