A good PCB layout for the ISO7221ADRG4 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling, use a high-quality power supply with low ripple and noise. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins, and consider adding a 1uF capacitor between the VCC and GND pins.
For optimal performance, use a low-pass filter or a signal conditioning circuit to remove high-frequency noise and ensure the input signal is within the specified range (0-5V). You can also use a voltage divider or an op-amp circuit to condition the input signal.
To troubleshoot, check the power supply voltage, ensure proper grounding, and verify the input signal is within the specified range. Also, check for any short circuits or open circuits on the PCB. If issues persist, consult the datasheet and application notes for guidance.
The ISO7221ADRG4 is rated for operation up to 125°C. However, it's essential to consider the device's thermal characteristics and ensure proper heat dissipation in high-temperature environments. Consult the datasheet and thermal design guidelines for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7221ADRG4 Overview

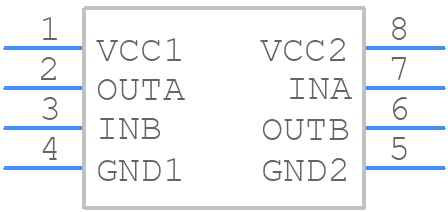

Use the download button to access the ISO7221ADRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO72,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
