Texas Instruments provides a recommended PCB layout in the application note SLUA365, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize EMI.
The ISO7221MDRG4 can handle input common-mode voltages up to 50 V, but it's essential to ensure that the input voltage does not exceed the maximum rating. Use voltage dividers or level shifters if necessary, and consider adding input protection circuits to prevent overvoltage conditions.
The ISO7221MDRG4 supports data rates up to 100 Mbps, but the actual achievable data rate depends on the specific application, PCB layout, and signal quality. For high-speed applications, consider using a faster isolator or optimizing the system design for maximum data rate.
The ISO7221MDRG4 is rated for operation up to 125°C, but it's crucial to consider thermal management and ensure that the device does not exceed the maximum junction temperature. Use heat sinks, thermal pads, or other cooling methods to maintain a safe operating temperature.
The ISO7221MDRG4 typically requires a 50-ohm termination at the input and output, but the specific termination scheme may vary depending on the application and signal characteristics. Consult the datasheet and application notes for guidance on termination schemes and impedance matching.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7221MDRG4 Overview

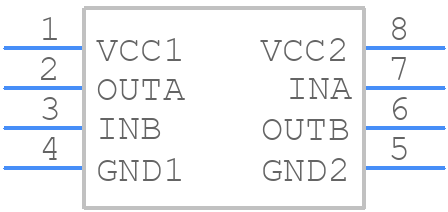

Use the download button to access the ISO7221MDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO72,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
