A good PCB layout for the ISO7240CDWG4 involves keeping the input and output signals separate, using a solid ground plane, and minimizing the length of the signal traces. TI provides a recommended PCB layout in the application note SLUA623.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. TI provides thermal design guidelines in the application note SLUA624.
The recommended input and output termination schemes for the ISO7240CDWG4 involve using a series resistor-capacitor (RC) network at the input and a parallel resistor-capacitor (RC) network at the output. This helps to reduce electromagnetic interference (EMI) and improve signal integrity.
To troubleshoot common issues with the ISO7240CDWG4, start by checking the power supply voltage, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to debug the signal waveforms and data transmission. TI provides troubleshooting guidelines in the application note SLUA625.
To prevent electrostatic discharge (ESD) damage, handle the ISO7240CDWG4 with anti-static wrist straps, mats, and bags. Use ESD-protected workstations and follow proper handling procedures, such as grounding oneself before handling the device. TI provides ESD handling guidelines in the application note SLUA626.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7240CDWG4 Overview

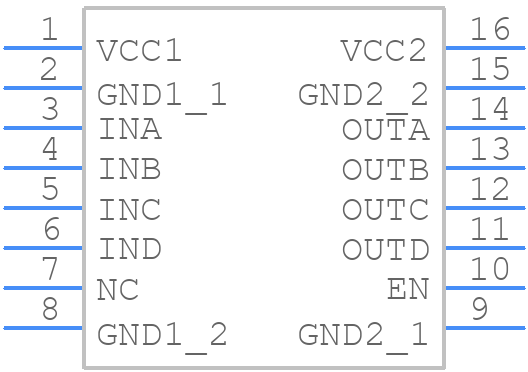

Use the download button to access the ISO7240CDWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO72,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
