ISO7240CFQDWRQ1 - Texas Instruments

Description: Automotive Catalog Quad, 4/0, 25Mbps, Digital Isolator, Selectable Failsafe

Download ISO7240CFQDWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

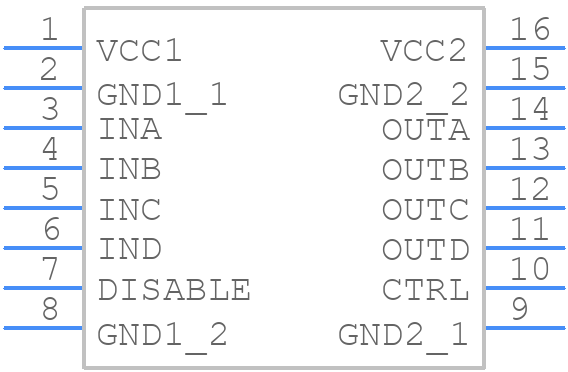

ISO7240CFQDWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7240CFQDWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
ISO7240CFQDWRQ1 - Texas Instruments - 3D model - Small Outline Packages - DW0016A
click to zoom

ISO7240CFQDWRQ1 Details

  • Manufacturer Part Number:

    ISO7240CFQDWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES FROM 4.5V TO 5.5V SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ISO7240CFQDWRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode choke or a ferrite bead to filter the power supply.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device. Consider using a thermally conductive material for the PCB. Operate the device within the recommended temperature range (–40°C to 125°C).
  • The device has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
  • Yes, the device is suitable for redundant or fault-tolerant systems. However, ensure that the system is designed to handle the device's fault detection and isolation features. Consult the datasheet and application notes for guidance.
  • Consult the datasheet and application notes for troubleshooting guidelines. Use a logic analyzer or oscilloscope to monitor the device's signals. Check the power supply, PCB layout, and component tolerances. Contact Texas Instruments' support team if the issue persists.
