A good PCB layout for the ISO7241CQDWRQ1 involves keeping the input and output circuits separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range.
The ISO7241CQDWRQ1 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly. Additionally, it's recommended to use ESD-protective packaging and to handle the devices in an ESD-controlled environment.
To troubleshoot issues with the ISO7241CQDWRQ1, start by verifying the power supply voltage, checking for proper PCB layout and routing, and ensuring that the device is operated within its recommended specifications. Use oscilloscopes and logic analyzers to debug the signal waveforms and identify potential issues.
When using the ISO7241CQDWRQ1 in a redundant or fault-tolerant system, consider implementing redundant channels, using error detection and correction mechanisms, and designing the system to tolerate single-point failures. It's also essential to ensure that the system can detect and recover from faults in a timely manner.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ISO7241CQDWRQ1 Overview

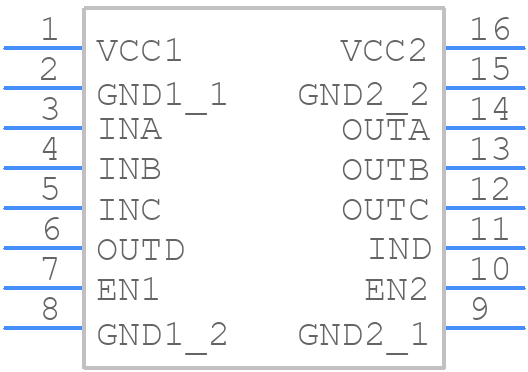

Use the download button to access the ISO7241CQDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO72,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
