Texas Instruments provides a recommended PCB layout in the ISO7330 datasheet, which includes guidelines for trace routing, component placement, and thermal management. Following this layout ensures optimal performance, reduced EMI, and improved reliability.
The ISO7330CQDWRQ1 has a wide input voltage range of 1.71V to 5.5V. To select the correct input voltage range, consider the voltage requirements of your system, the voltage tolerance of your components, and the power consumption of your design. Consult the datasheet for specific voltage range recommendations.
The ISO7330CQDWRQ1 supports data rates up to 100 Mbps, making it suitable for high-speed digital isolators in industrial, medical, and automotive applications.
The ISO7330CQDWRQ1 is rated for operation up to 125°C. To ensure reliable operation in high-temperature environments, follow proper thermal management practices, such as using heat sinks, thermal interfaces, and ensuring good airflow. Consult the datasheet for thermal characteristics and derating guidelines.
The ISO7330CQDWRQ1 has built-in ESD protection up to 4 kV (HBM) and 1 kV (CDM) to protect against electrostatic discharge. It also features latch-up immunity to prevent unwanted device operation. These features ensure reliable operation in harsh environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7330CQDWRQ1 Overview

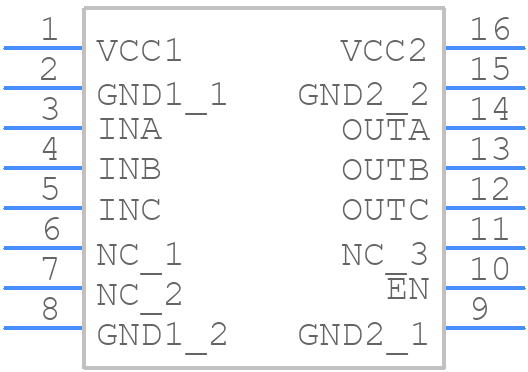

Use the download button to access the ISO7330CQDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO73,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
