A good PCB layout for the ISO7340CQDWRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure EMC with the ISO7340CQDWRQ1, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Also, ensure that the PCB layout is designed to minimize radiation and susceptibility to electromagnetic interference.
The maximum operating temperature range for the ISO7340CQDWRQ1 is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
The power-up and power-down sequencing for the ISO7340CQDWRQ1 is critical. It's recommended to power up the device in the following sequence: VCC, VDD, and then the input signals. During power-down, the sequence should be reversed. Additionally, ensure that the power supply voltage is stable and within the recommended range before applying input signals.
The recommended input signal amplitude for the ISO7340CQDWRQ1 is 10 mV to 1 V, and the frequency range is up to 100 kHz. However, the device can handle higher frequencies and amplitudes, but with reduced performance and accuracy.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ISO7340CQDWRQ1 Overview

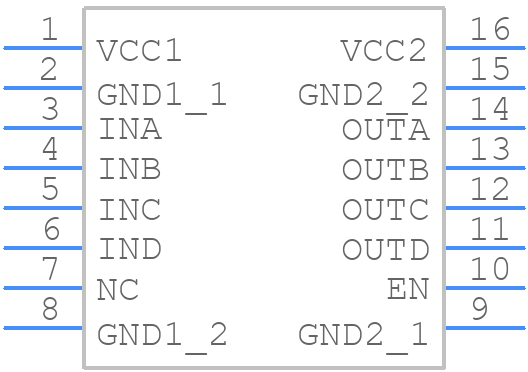

Use the download button to access the ISO7340CQDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO73,
or try a keyword search, such as Other Interface ICs
