Texas Instruments provides a recommended PCB layout in the application note SLUA645, which includes guidelines for signal routing, grounding, and decoupling to minimize noise and ensure reliable operation.
The ISO7342CQDWQ1 can handle input common-mode voltages up to 25V. However, it's essential to ensure that the input voltage does not exceed the maximum rating. Use voltage dividers or level shifters if necessary to bring the input voltage within the recommended range.
The ISO7342CQDWQ1 supports data rates up to 100 Mbps. However, the actual data rate may be limited by the specific application, PCB layout, and noise conditions. It's recommended to perform signal integrity analysis and testing to determine the maximum achievable data rate.
The ISO7342CQDWQ1 is rated for operation up to 125°C. However, it's essential to consider the derating of the device's performance and reliability at elevated temperatures. Consult the datasheet and application notes for guidance on high-temperature operation.
To ensure EMC, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing loop areas, and using shielding if necessary. Additionally, consider using EMI filters or common-mode chokes to reduce emissions and susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7342CQDWQ1 Overview

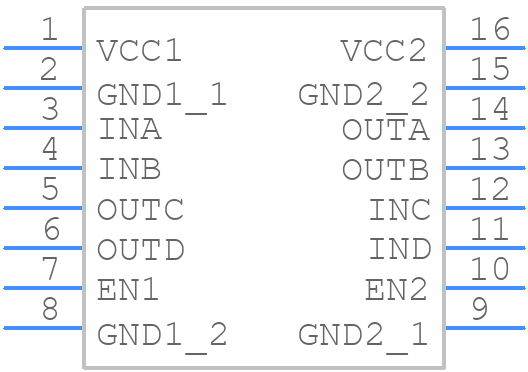

Use the download button to access the ISO7342CQDWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO73,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
