A good PCB layout for the ISO7342CQDWRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device, and consider adding a ferrite bead or a power inductor to filter out high-frequency noise.
The recommended clock frequency for the ISO7342CQDWRQ1 is between 10 kHz and 100 kHz. However, the optimal frequency depends on the specific application and noise environment. It's recommended to experiment with different frequencies to find the best trade-off between noise immunity and data rate.
To handle common-mode transients and EMI, use a common-mode choke or a ferrite bead on the signal lines, and consider adding shielding to the PCB. Also, ensure the device is properly grounded and decoupled, and use a low-pass filter or a shielded cable to reduce EMI.
The maximum cable length supported by the ISO7342CQDWRQ1 depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 100 meters, but this may vary depending on the signal frequency, cable quality, and noise environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7342CQDWRQ1 Overview

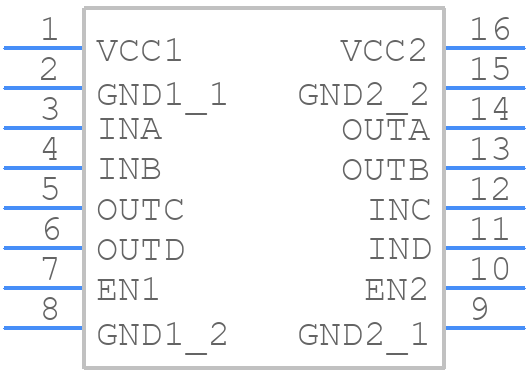

Use the download button to access the ISO7342CQDWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO73,
or try a keyword search, such as Other Interface ICs
