Texas Instruments provides a recommended PCB layout in the application note SLUA645, which includes guidelines for signal routing, grounding, and decoupling to minimize noise and ensure reliable operation.
The ISO7342FCQDWQ1 can handle input common-mode voltages up to 100 V, but it's essential to ensure that the input voltage does not exceed the maximum rating. Use voltage dividers or attenuation networks to reduce the input voltage if necessary.
The ISO7342FCQDWQ1 can support data rates up to 100 Mbps, but the actual data rate may be limited by the system design, cable length, and noise environment.
To ensure EMC, follow proper PCB design practices, use shielding, and implement filtering and decoupling techniques. Additionally, consider using the ISO7342FCQDWQ1 in conjunction with other TI devices, such as the TPS709 or TPS710, which are designed to provide additional EMI filtering.
The typical power consumption of the ISO7342FCQDWQ1 is around 1.5 mA per channel, but this can vary depending on the operating frequency, input voltage, and output load. Refer to the datasheet for more detailed power consumption information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7342FCQDWQ1 Overview

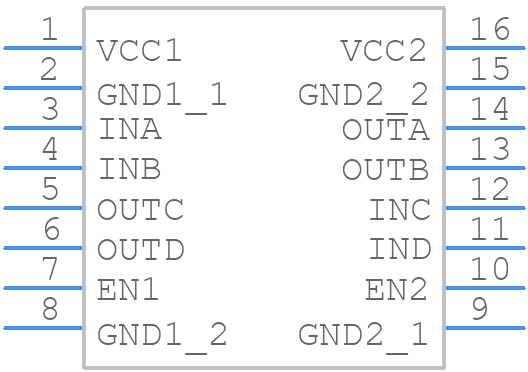

Use the download button to access the ISO7342FCQDWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO73,
or try a keyword search, such as Other Interface ICs
