Texas Instruments provides a recommended PCB layout in the ISO7721QDWQ1 datasheet, but it's essential to follow good layout practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing signal trace lengths and loops.
To ensure reliable operation across the entire temperature range (-40°C to 125°C), it's crucial to follow the recommended operating conditions, including voltage and current limits, and to consider thermal management strategies, such as heat sinking and thermal interface materials.
Operating the ISO7721QDWQ1 at a lower supply voltage may reduce power consumption but can also affect performance, such as increased propagation delay and reduced output current capability. Operating at a higher supply voltage can improve performance but increases power consumption and may reduce the device's lifespan.
The ISO7721QDWQ1 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing and assembly. Additionally, latch-up prevention can be achieved by following the recommended operating conditions and avoiding excessive voltage or current stress on the device.
Galvanic isolation provides superior noise immunity and safety, but it may introduce additional latency and reduce the maximum data rate. Non-isolated configurations can offer higher data rates but may be more susceptible to noise and safety issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7721QDWQ1 Overview

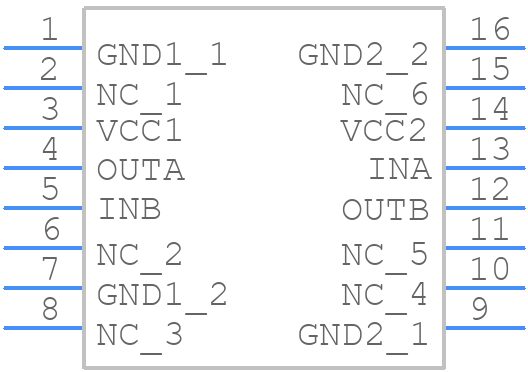

Use the download button to access the ISO7721QDWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO77,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
