Texas Instruments provides a recommended PCB layout in the application note SLUAAC4, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation across the entire temperature range (-40°C to 125°C), it's essential to follow the recommended operating conditions, including voltage and current limits, and to implement proper thermal management, such as heat sinking and airflow, to prevent overheating.
The ISO7730QDBQRQ1's low power consumption (typically 1.2 mA per channel) can impact system design, particularly in battery-powered applications. Engineers should consider the overall system power budget, battery life, and power management strategies to ensure optimal performance and minimize power consumption.
Texas Instruments provides a range of debugging tools and resources, including the ISO7730 evaluation module, software development kits, and application notes. Engineers can also use standard debugging techniques, such as logic analyzers and oscilloscopes, to identify and resolve issues with the device.
The ISO7730QDBQRQ1 is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). However, engineers should still consider EMI and RFI in system design, including proper shielding, grounding, and layout techniques, to ensure reliable operation and compliance with regulatory standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7730QDBQRQ1 Overview

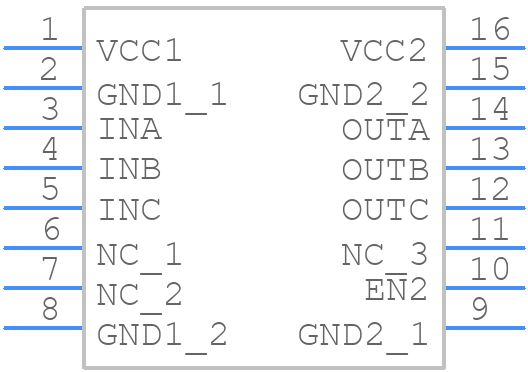

Use the download button to access the ISO7730QDBQRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO77,
or try a keyword search, such as Other Interface ICs
