Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the isolation barrier is at least 1 mm wide and the creepage distance is at least 3.2 mm to meet safety standards.
To ensure reliable operation across the entire temperature range (-40°C to 125°C), it's crucial to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, consider the thermal resistance of the package and the PCB, and ensure proper heat sinking and thermal management.
The propagation delay of the ISO7730QDWQ1 can affect the overall system performance, particularly in high-speed applications. Engineers should consider the delay when designing the system's timing and synchronization, and ensure that the delay is accounted for in the system's clock domain crossing and data transmission protocols.
To ensure proper operation, it's essential to follow the recommended power-up and power-down sequencing in the datasheet. This includes powering up the VCC and VISO pins simultaneously, and powering down the VISO pin before the VCC pin. Improper sequencing can lead to device damage or malfunction.
The ISO7730QDWQ1 is designed to minimize EMI and RFI, but engineers should still consider the device's emissions and susceptibility in their system design. This includes using proper shielding, filtering, and grounding techniques, as well as following good PCB layout practices to minimize radiation and coupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7730QDWQ1 Overview

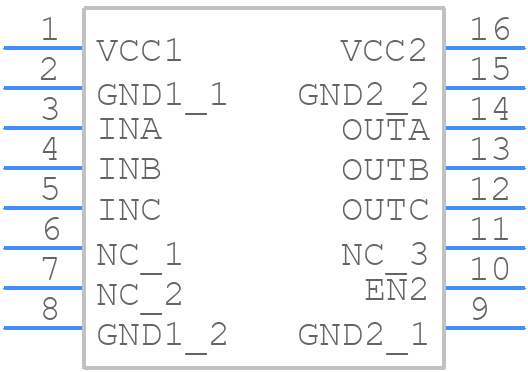

Use the download button to access the ISO7730QDWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO77,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
