Texas Instruments provides a recommended PCB layout in the ISO7740QDBQRQ1 datasheet, which includes guidelines for trace routing, component placement, and thermal management. Additionally, TI offers a PCB layout checklist and a layout guide for isolated devices.
To ensure reliable operation across the full temperature range (-40°C to 125°C), follow the recommended operating conditions, including voltage and current ratings. Also, consider the thermal management guidelines provided in the datasheet, and ensure that the device is properly soldered and mounted on the PCB.
The ISO7740QDBQRQ1 has a propagation delay of around 10 ns. This delay should be considered when designing the system, especially in high-speed applications. Ensure that the system's timing requirements are met by accounting for the propagation delay in the signal path.
The ISO7740QDBQRQ1 has specific power-up and power-down sequencing requirements to ensure proper operation. Follow the recommended power-up and power-down sequences outlined in the datasheet to prevent damage or malfunction.
The ISO7740QDBQRQ1 has built-in ESD protection, but it's still important to follow proper ESD handling and storage procedures to prevent damage. Use ESD-safe materials, handle the device by the body or pins, and store it in an ESD-protected environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7740QDBQRQ1 Overview

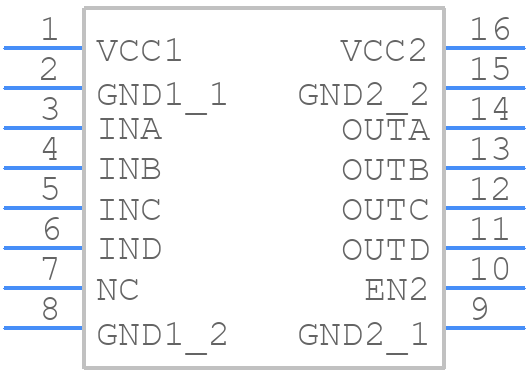

Use the download button to access the ISO7740QDBQRQ1 schematic symbol, PCB footprint, and 3D model.
