ALSO REQUIRED VCC2 2.25-5.5V SUPPLY; ALSO OPERATE WITH 3.3V AND 5V SUPPLY
Interface IC Type:
DIGITAL ISOLATOR
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
10.3 mm
Moisture Sensitivity Level:
2
Number of Channels:
6
Number of Functions:
6
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
2.65 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.25 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm
ISO7760QDWRQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the ISO7760QDWRQ1 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, the TI website offers a PCB layout guide and a layout checklist to ensure optimal performance.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions and thermal management guidelines in the datasheet. Use a heat sink or thermal pad to dissipate heat, and consider using a thermally enhanced package or a heat spreader. Also, ensure proper airflow and avoid overheating the device.
The ISO7760QDWRQ1 is designed to operate with a specific voltage supply range (1.71 V to 5.5 V). Using a different voltage supply may affect the device's performance, power consumption, and reliability. Consult the datasheet and application notes for specific guidance on voltage supply considerations.
To troubleshoot issues with the ISO7760QDWRQ1, start by reviewing the datasheet and application notes. Check the device's configuration, voltage supply, and PCB layout. Use debugging tools, such as logic analyzers or oscilloscopes, to identify the root cause of the issue. Consult the TI support forum or contact TI's technical support for further assistance.
Yes, the ISO7760QDWRQ1 is a high-frequency device that requires careful consideration of electromagnetic interference (EMI) and electromagnetic compatibility (EMC). Follow the recommended PCB layout and routing guidelines, use shielding and filtering techniques, and ensure proper grounding and decoupling to minimize EMI/EMC issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7760QDWRQ1 Overview

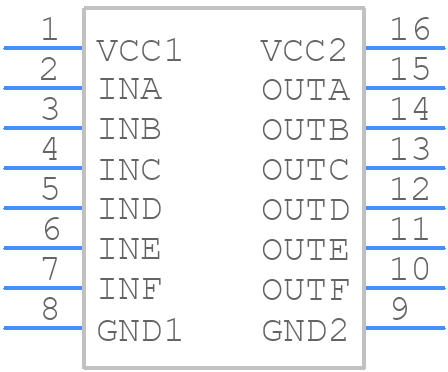

Use the download button to access the ISO7760QDWRQ1 schematic symbol, PCB footprint, and 3D model.
