ISO7761FQDBQRQ1 - Texas Instruments

Description: Digital Isolator CMOS 6-CH 100Mbps Automotive 16-Pin SSOP T/R

Download ISO7761FQDBQRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

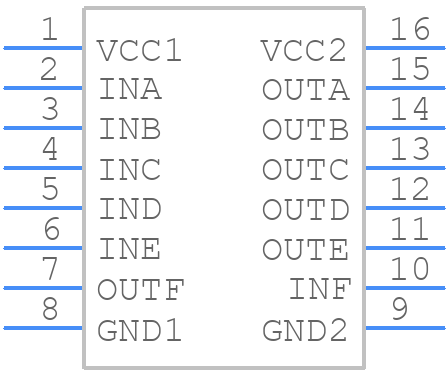

ISO7761FQDBQRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISO7761FQDBQRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ0016A
click to zoom
3D Models
ISO7761FQDBQRQ1 - Texas Instruments - 3D model - Small Outline Packages - DBQ0016A
click to zoom

ISO7761FQDBQRQ1 Details

  • Manufacturer Part Number:

    ISO7761FQDBQRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    6

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.895 mm

ISO7761FQDBQRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode choke to filter the power supply.
  • Use a reliable communication protocol like SPI or I2C, and ensure proper signal termination and shielding. Also, consider using a common mode filter to reduce EMI.
  • The maximum cable length depends on the specific application and the type of cable used. As a general guideline, the ISO7761 can support cable lengths up to 10 meters (33 feet) with proper termination and shielding.
  • Use proper shielding, grounding, and filtering techniques to minimize EMI. Ensure that the PCB layout and component placement are optimized for EMC. Also, consider using a metal shield or a Faraday cage to enclose the device.
  • The ISO7761 has a maximum junction temperature of 150°C. Ensure proper heat sinking and thermal management to prevent overheating. Use a thermal pad or a heat sink to dissipate heat effectively.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISO7761FQDBQRQ1 Overview

Use the download button to access the ISO7761FQDBQRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO77, or try a keyword search, such as Other Interface ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
