ALSO REQUIRED VCC2 2.25-5.5V SUPPLY; ALSO OPERATE WITH 3.3V AND 5V SUPPLY
Interface IC Type:
DIGITAL ISOLATOR
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
10.3 mm
Moisture Sensitivity Level:
2
Number of Channels:
6
Number of Functions:
6
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
2.65 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.25 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm
ISO7763FQDWQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUA645, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The ISO7763FQDWQ1 requires a specific power-up and power-down sequencing to ensure proper operation. The recommended sequence is to power up VCC first, followed by VISO, and then enable the device. During power-down, disable the device, then power down VISO, and finally power down VCC.
The maximum cable length supported by the ISO7763FQDWQ1 depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length below 10 meters to ensure reliable operation and minimize signal degradation.
Texas Instruments provides a troubleshooting guide in the application note SLUA646, which covers common issues like signal integrity and EMI problems. The guide provides step-by-step procedures for identifying and resolving these issues, including tips on signal routing, component selection, and layout optimization.
Yes, the ISO7763FQDWQ1 has specific thermal management requirements to ensure reliable operation. Texas Instruments recommends using a thermal pad or heat sink to dissipate heat, and ensuring that the device is operated within the recommended temperature range of -40°C to 125°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7763FQDWQ1 Overview

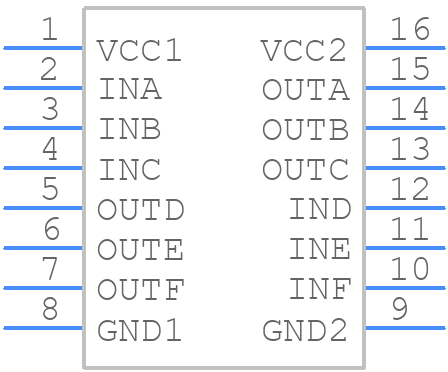

Use the download button to access the ISO7763FQDWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO77,
or try a keyword search, such as Other Interface ICs
