ALSO REQUIRED VCC2 2.25-5.5V SUPPLY; ALSO OPERATE WITH 3.3V AND 5V SUPPLY
Interface IC Type:
DIGITAL ISOLATOR
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
4.905 mm
Moisture Sensitivity Level:
2
Number of Channels:
6
Number of Functions:
6
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.75 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.25 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.895 mm
ISO7763QDBQRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for the ISO7763QDBQRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable communication, make sure to use a reliable clock source, use a proper termination resistor, and ensure that the signal lines are properly shielded. Also, use a common mode filter to reduce electromagnetic interference (EMI).
The maximum cable length supported by the ISO7763QDBQRQ1 depends on the specific application and the type of cable used. However, as a general rule, the maximum cable length should not exceed 10 meters to ensure reliable communication.
To troubleshoot issues with the ISO7763QDBQRQ1, start by checking the power supply voltage, then verify that the clock signal is present and stable. Next, check the signal integrity using an oscilloscope, and finally, verify that the microcontroller is properly configured to communicate with the ISO7763QDBQRQ1.
The ISO7763QDBQRQ1 is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. Consult the datasheet for specific derating guidelines and ensure that the device is properly heat-sinked to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7763QDBQRQ1 Overview

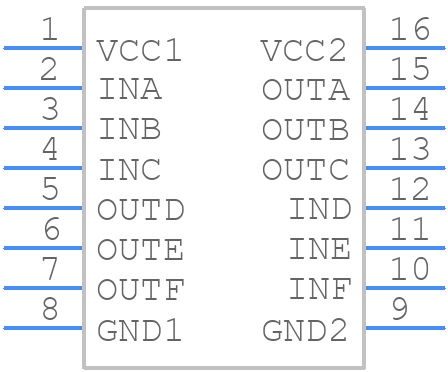

Use the download button to access the ISO7763QDBQRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO77,
or try a keyword search, such as Other Interface ICs
