Texas Instruments provides a recommended PCB layout in the application note SLUA685, which includes guidelines for signal routing, grounding, and decoupling to minimize noise and ensure reliable operation.
To ensure proper isolation, follow the guidelines in the datasheet for creepage and clearance distances, and use a suitable isolation barrier such as a slot or gap in the PCB. Additionally, use separate power supplies for the input and output circuits, and avoid common-mode voltage connections.
The ISO7821LLSDWR is rated for operation from -40°C to 125°C. At higher temperatures, the device's performance may degrade, with increased propagation delay and reduced common-mode rejection ratio (CMRR). Ensure proper thermal management and heat sinking to maintain optimal performance.
Start by verifying the PCB layout and assembly, ensuring that the device is properly soldered and that there are no shorts or opens. Check the input and output voltage levels, and verify that the device is properly powered. Use an oscilloscope to monitor the input and output signals, and consult the datasheet and application notes for troubleshooting guidelines.
Yes, the ISO7821LLSDWR is designed to meet the requirements of safety-critical applications, with features such as reinforced isolation and fault detection. However, it is essential to follow the guidelines in the datasheet and relevant safety standards, such as IEC 60601-1 or IEC 61508, to ensure the device is used in a safe and reliable manner.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISO7821LLSDWR Overview

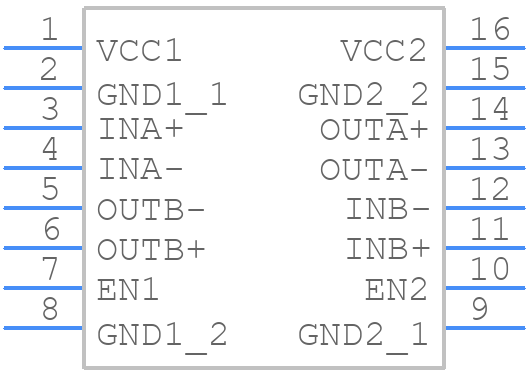

Use the download button to access the ISO7821LLSDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISO78,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
