ISOUSB111DWXR - Texas Instruments

Description: USB Interface IC Low emissions, full and low speed isolated USB repeater 16-SSOP -40 to 125

Download ISOUSB111DWXR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

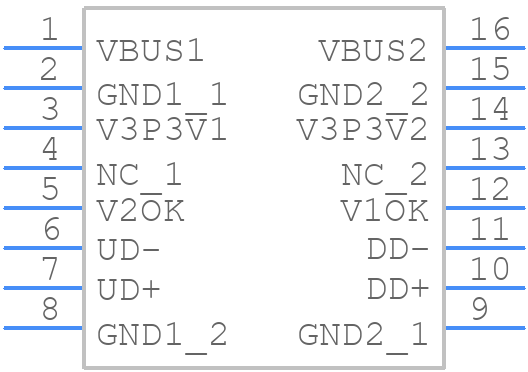

ISOUSB111DWXR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISOUSB111DWXR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - ISOUSB111DWXR
click to zoom
3D Models
ISOUSB111DWXR - Texas Instruments - 3D model - Small Outline Packages - ISOUSB111DWXR
click to zoom

ISOUSB111DWXR Details

  • Manufacturer Part Number:

    ISOUSB111DWXR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.25 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

ISOUSB111DWXR Frequently Asked Questions (FAQs)

  • The ISOUSB111DWXR supports cable lengths up to 3 meters (10 feet) while maintaining USB 2.0 high-speed data rates. However, longer cable lengths may be possible at lower data rates.
  • The ISOUSB111DWXR has an integrated power management system that allows it to operate from a single 3.3V supply and provides voltage regulation for the USB interface. It also has a built-in voltage supervisor that monitors the supply voltage and resets the device if it falls below a certain threshold.
  • Yes, the ISOUSB111DWXR is backward compatible with USB 1.1 devices and can also operate at USB 3.0 speeds, although it is primarily designed for USB 2.0 high-speed applications.
  • The isolation barrier in the ISOUSB111DWXR provides electrical isolation between the USB interface and the system logic, which helps to prevent damage to the system from faults or surges on the USB bus. It also helps to reduce electromagnetic interference (EMI) and improve system reliability.
  • Yes, the ISOUSB111DWXR is designed to operate over an extended temperature range (-40°C to 125°C) and has a high level of electromagnetic compatibility (EMC), making it suitable for use in industrial or automotive applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISOUSB111DWXR Overview

Use the download button to access the ISOUSB111DWXR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISOUS, or try a keyword search, such as Other Interface ICs
