- Part Number ISOW1044BDFMR
- Manufacturer Texas Instruments
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DFM0020A
- Released Date Feb 20, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ISOW1044BDFMR Details
-
Manufacturer Part Number:
ISOW1044BDFMR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Data Rate:
5000 Mbps
ISOW1044BDFMR Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10nF capacitor between VCC and GND for decoupling.
-
Use a common mode filter or a shielded cable to minimize electromagnetic interference (EMI). Ensure the isolated side is properly grounded and the signal lines are properly terminated.
-
The maximum cable length depends on the specific application and the type of cable used. As a general guideline, a cable length of up to 100 meters is supported, but it's recommended to consult the datasheet and application notes for specific guidance.
-
Power up the VCC pin first, followed by the VISO pin. During power-down, turn off the VISO pin first, followed by the VCC pin. Ensure the power supply has a soft-start capability to prevent inrush currents.
-
The device has a maximum junction temperature of 150°C. Ensure good airflow and a heat sink if necessary. Use thermal pads or thermal tape to improve heat dissipation.
Trust Checks
Community Provided
System Verified
Community Approved
ISOW1044BDFMR Overview

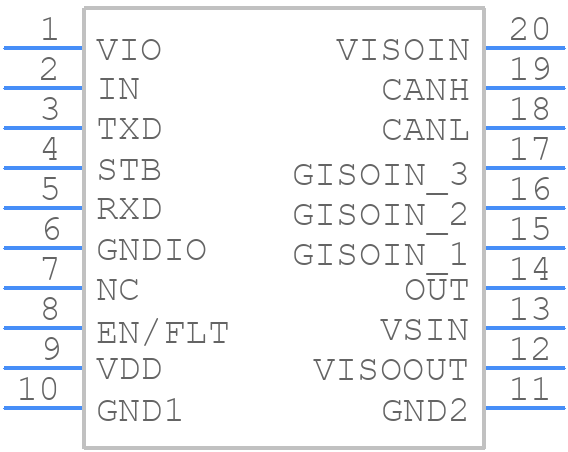

Use the download button to access the ISOW1044BDFMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISOW1,
or try a keyword search, such as Network Interfaces
