Texas Instruments provides a recommended PCB layout in the application note SLUAAC4, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended thermal management guidelines in the datasheet, including providing adequate heat sinking and airflow. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 150°C.
The ISOW7721DFMR is designed to operate with a high common-mode voltage (up to 1000 Vrms) on the input side. However, it is essential to ensure that the common-mode voltage does not exceed the specified maximum rating to prevent damage to the device. Additionally, the system designer should consider the impact of common-mode voltage on the overall system performance and safety.
To troubleshoot issues with the ISOW7721DFMR, start by reviewing the datasheet and application notes to ensure that the device is being used within the specified operating conditions. Check the power supply, input signals, and output loads to ensure they are within the recommended ranges. Use oscilloscopes and other diagnostic tools to identify any anomalies or faults. If the issue persists, contact Texas Instruments support for further assistance.
When working with the ISOW7721DFMR, it is essential to follow proper safety precautions to avoid electrical shock, injury, or damage to the device. Ensure that the device is handled and installed in accordance with the recommended safety guidelines, including proper isolation and electrical safety practices. Additionally, follow the safety guidelines outlined in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISOW7721DFMR Overview

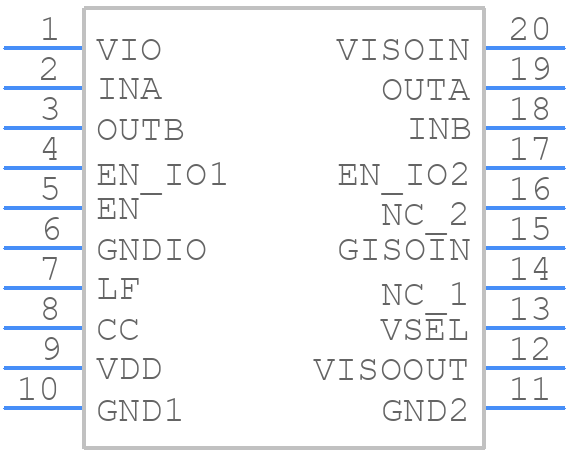

Use the download button to access the ISOW7721DFMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISOW7,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
