Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended thermal management guidelines in the datasheet, including providing adequate heat sinking and airflow. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 125°C.
The ISOW7740DFMR is rated for 4000 Vrms isolation voltage. If the system requires a different isolation voltage rating, a different device may be required. It is essential to ensure that the isolation voltage rating of the device matches the system requirements to prevent electrical shock, injury, or equipment damage.
To troubleshoot issues with the ISOW7740DFMR, start by reviewing the datasheet and application notes to ensure that the device is being used within its specified operating conditions. Check for proper power supply, signal integrity, and thermal management. Use oscilloscopes and logic analyzers to debug the system and identify the root cause of the issue. If necessary, contact Texas Instruments support for further assistance.
The ISOW7740DFMR is designed to operate with high-frequency switching and high-di/dt signals. However, it is essential to follow the recommended layout and routing guidelines to minimize electromagnetic interference (EMI) and ensure reliable operation. Additionally, the device's common-mode transient immunity (CMTI) should be considered when designing the system to ensure that it can withstand high-frequency switching and high-di/dt signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISOW7740DFMR Overview

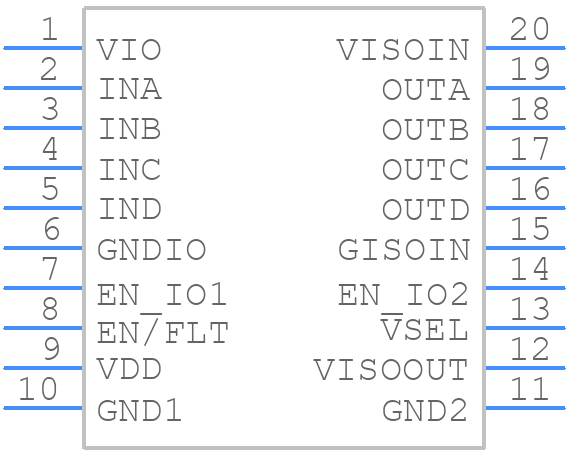

Use the download button to access the ISOW7740DFMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISOW7,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
