Texas Instruments provides a recommended PCB layout in the application note SLUA685, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended thermal management guidelines in the datasheet, including providing adequate heat sinking and airflow. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 125°C.
The ISOW7742FDFMR is rated for 2.5 kVrms isolation voltage. If the system requires a different isolation voltage rating, a different device may be required. It is essential to ensure that the device is selected based on the system's isolation voltage requirements to prevent electrical shock, injury, or equipment damage.
To troubleshoot issues with the ISOW7742FDFMR, start by reviewing the datasheet and application notes to ensure that the device is properly configured and operated within its specifications. Check for proper power supply, signal integrity, and thermal management. Use oscilloscopes and logic analyzers to debug the system and identify the root cause of the issue. If necessary, contact Texas Instruments' technical support for further assistance.
The ISOW7742FDFMR is designed to operate in systems with high-frequency switching or noise. However, it is essential to follow proper PCB layout and design guidelines to minimize electromagnetic interference (EMI) and ensure reliable operation. Additionally, the device's common-mode transient immunity (CMTI) and electromagnetic susceptibility (EMS) should be considered when designing the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISOW7742FDFMR Overview

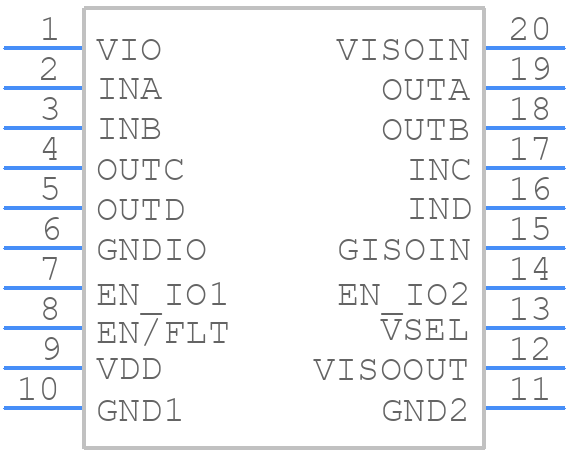

Use the download button to access the ISOW7742FDFMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISOW7,
or try a keyword search, such as Other Interface ICs
