Texas Instruments provides a recommended PCB layout in the ISOW7742FQDFMRQ1 datasheet, but it's essential to follow good PCB design practices, such as keeping the signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the isolation barrier is not compromised by vias or traces crossing the isolation boundary.
To ensure reliable operation across the entire temperature range (-40°C to 125°C), follow the recommended operating conditions, and consider the thermal management of the device. Ensure proper heat sinking, and avoid exceeding the maximum junction temperature (Tj) of 150°C. Also, consider the effects of temperature on the device's performance, such as changes in propagation delay and common-mode rejection ratio.
The ISOW7742FQDFMRQ1 is a robust device, but high-vibration environments can still affect its performance. Ensure the device is properly mounted and secured to the PCB to minimize the effects of vibration. Additionally, consider the potential for vibration-induced signal integrity issues and take measures to mitigate them, such as using signal conditioning or filtering.
The ISOW7742FQDFMRQ1 is a safety-certified device, meeting the requirements of various safety standards, such as IEC 60747-5-5 and UL 1577. However, it's essential to follow the guidelines and recommendations outlined in the datasheet and safety certifications to ensure the device is used in a safety-critical application. Additionally, consider the system-level safety requirements and ensure the device is used in a way that meets those requirements.
To troubleshoot issues with the ISOW7742FQDFMRQ1, start by consulting the datasheet and application notes. Check the device's operating conditions, signal integrity, and power supply. Use oscilloscopes or logic analyzers to debug the signals and identify potential issues. If the problem persists, consider consulting with Texas Instruments' support resources or seeking assistance from a qualified engineer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISOW7742FQDFMRQ1 Overview

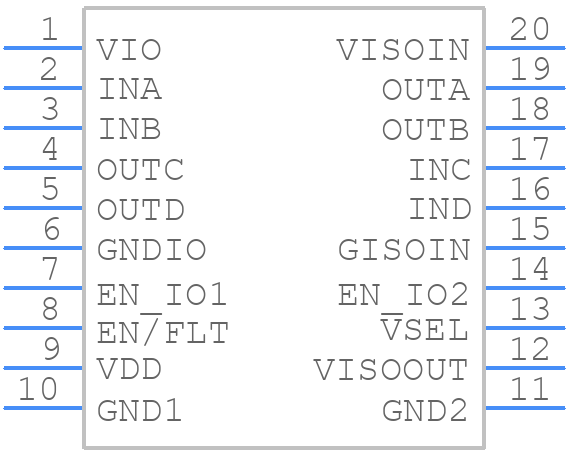

Use the download button to access the ISOW7742FQDFMRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISOW7,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
