Texas Instruments provides a recommended PCB layout in the application note SLUA645, which includes guidelines for signal routing, grounding, and component placement to minimize noise and ensure reliable operation.
To ensure reliable communication, it's essential to follow the recommended signal integrity guidelines, use a common mode filter, and ensure that the signal amplitude and frequency are within the specified range. Additionally, the device should be operated within the recommended temperature range and power supply voltage.
The ISOW7743FDFMR can support data rates up to 100 Mbps, but the actual data rate may be limited by the specific application, signal quality, and system design. It's recommended to consult the datasheet and application notes for more information on data rate limitations.
The ISOW7743FDFMR has a specific power-up and power-down sequencing requirement to ensure reliable operation. It's recommended to power up the VCC1 and VCC2 supplies simultaneously, and power down the VCC2 supply before the VCC1 supply. Consult the datasheet for more information on power sequencing.
The ISOW7743FDFMR is a high-voltage device and requires proper handling and safety precautions to avoid electrical shock, injury, or damage. It's recommended to follow proper ESD handling procedures, use protective equipment, and ensure that the device is operated within the specified voltage and temperature ranges.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISOW7743FDFMR Overview

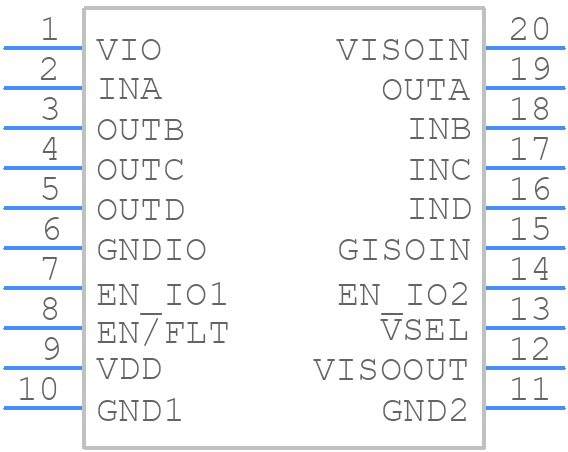

Use the download button to access the ISOW7743FDFMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISOW7,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
