Texas Instruments provides a recommended PCB layout in the application note SLUA645, which includes guidelines for signal routing, grounding, and component placement to minimize noise and ensure reliable operation.
To ensure reliable communication, it's essential to follow the recommended DC-DC converter design, use a suitable isolation capacitance, and implement a robust communication protocol with error detection and correction mechanisms.
The ISOW7744FDFMR is rated for operation from -40°C to 125°C. Temperature affects the device's performance, particularly the DC-DC converter efficiency and the isolation barrier's reliability. Ensure proper thermal management and consider derating the device's performance at extreme temperatures.
Yes, the ISOW7744FDFMR is suitable for safety-critical applications. It meets the requirements of IEC 60747-5-2 (VDE 0884-11) and UL 1577 for reinforced isolation. Additionally, it is certified to IEC 61508 (SIL 3) and IEC 62368-1 (CB report).
Texas Instruments provides a troubleshooting guide in the application note SLUA646, which covers common issues, diagnostic techniques, and repair procedures. Additionally, the device's built-in diagnostic features, such as the fault pin, can help identify problems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISOW7744FDFMR Overview

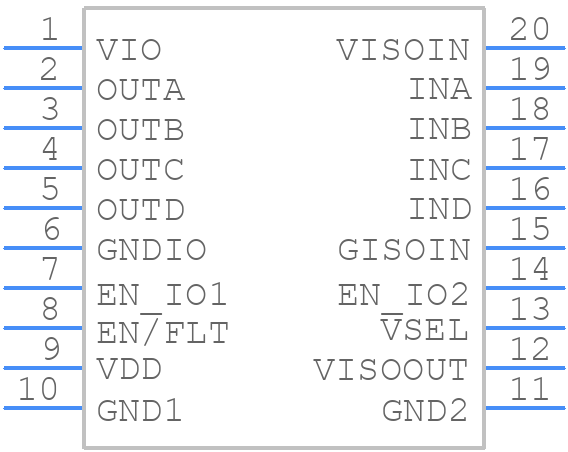

Use the download button to access the ISOW7744FDFMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISOW7,
or try a keyword search, such as Other Interface ICs
