ISOW7821FDWER - Texas Instruments

Description: High-Efficiency, Low-Emissions, Reinforced Digital Isolator With Integrated Power

Download ISOW7821FDWER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

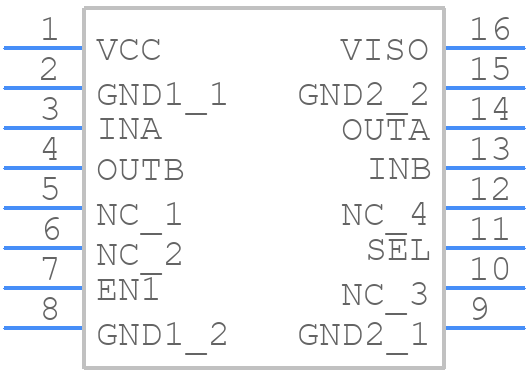

ISOW7821FDWER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ISOW7821FDWER - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWE0016A
click to zoom
3D Models
ISOW7821FDWER - Texas Instruments - 3D model - Small Outline Packages - DWE0016A
click to zoom

ISOW7821FDWER Details

  • Manufacturer Part Number:

    ISOW7821FDWER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-11-29

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    IEC 62368-1

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ISOW7821FDWER Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a ferrite bead or a 10-ohm resistor in series with the VCC pin to reduce noise.
  • Use a common mode filter or a ferrite bead on the input lines to reduce electromagnetic interference (EMI). Ensure the signal lines are properly terminated, and the signal frequency is within the recommended range (up to 100 Mbps).
  • The maximum cable length depends on the signal frequency, cable quality, and noise environment. As a general guideline, the recommended cable length is up to 100 meters for a 100 Mbps signal. However, it's recommended to test the specific application to determine the maximum reliable cable length.
  • Ensure that the VCC pin is powered up before the input signals. During power-down, ensure that the input signals are removed before the VCC pin is powered down. A power sequencing circuit or a voltage supervisor can be used to ensure proper power-up and power-down sequencing.
  • The device has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB. Use thermal vias or a heat sink if necessary. Keep the device away from heat sources and ensure good airflow.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ISOW7821FDWER Overview

Use the download button to access the ISOW7821FDWER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISOW7, or try a keyword search, such as Other Interface ICs
