The recommended power-up sequence is to apply VCC first, followed by VCCIO, and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
To implement a reliable JTAG boundary scan chain, ensure that the TCK clock signal is stable and within the recommended frequency range. Also, use a pull-up resistor on the TMS signal and ensure that the JTAG pins are not shared with other functions.
The maximum operating frequency of the ISPLSI2032-80LJ is 80 MHz, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulation and testing to determine the maximum frequency for a specific design.
The asynchronous reset signal (nSRST) should be asserted low for at least 10 ns to ensure that the device resets correctly. It's also recommended to synchronize the reset signal with the clock domain to prevent metastability issues.
The recommended method for programming the ISPLSI2032-80LJ is to use the Lattice Diamond software or the iCEcube2 software, depending on the specific device and application. These software tools provide a user-friendly interface for designing, verifying, and programming the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISPLSI2032-80LJ Overview

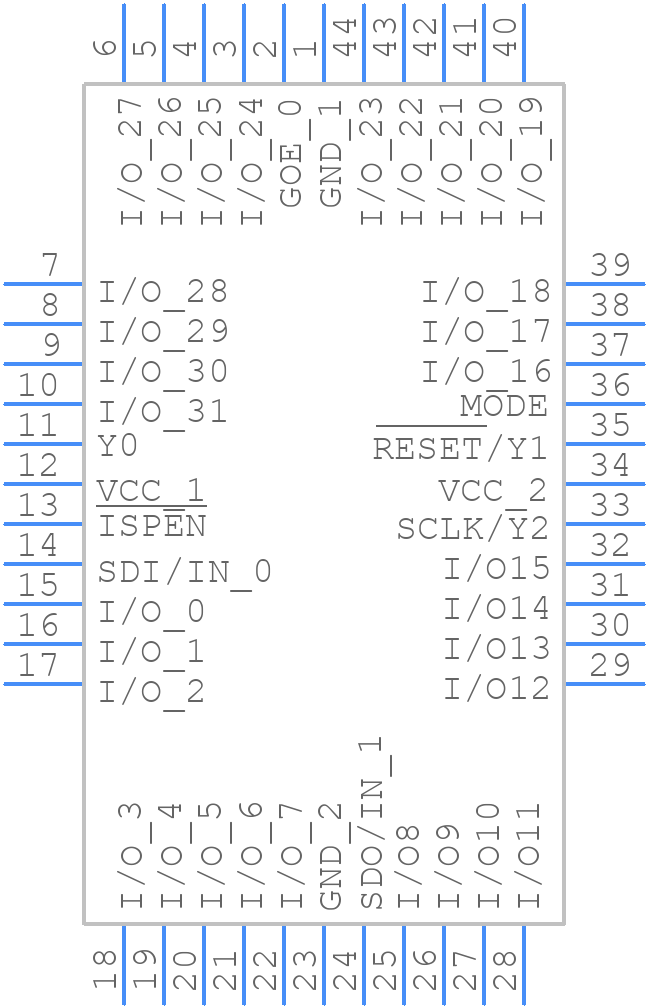

Use the download button to access the ISPLSI2032-80LJ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISPLS,
or try a keyword search, such as Programmable Logic Devices
