The recommended power-up sequence is to apply VCC first, followed by VCCIO, and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
To implement a reliable JTAG boundary scan chain, ensure that the TCK clock signal is stable and within the recommended frequency range. Also, use a robust JTAG controller and follow the IEEE 1149.1 standard guidelines for chain configuration and testing.
The maximum operating frequency of the ISPLSI2032E-110LJ44 is 110 MHz, as indicated by the '-110' in the part number. However, the actual operating frequency may be limited by the specific application, PCB design, and environmental conditions.
To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB thermal design guidelines. Also, monitor the device's junction temperature (TJ) to prevent overheating, which can affect reliability and performance.
The input and output termination resistors should be chosen based on the specific application and signal integrity requirements. Typically, a 1 kΩ to 10 kΩ resistor is used for input termination, and a 22 Ω to 50 Ω resistor is used for output termination. Consult the datasheet and application notes for more detailed guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISPLSI2032E-110LJ44 Overview

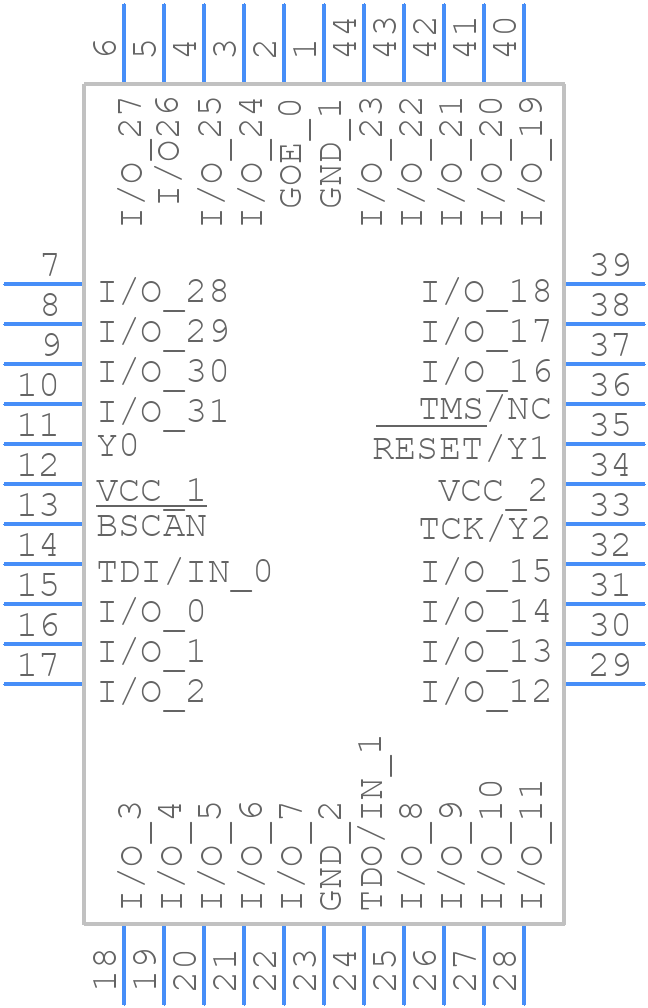

Use the download button to access the ISPLSI2032E-110LJ44 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ISPLS,
or try a keyword search, such as Programmable Logic Devices
