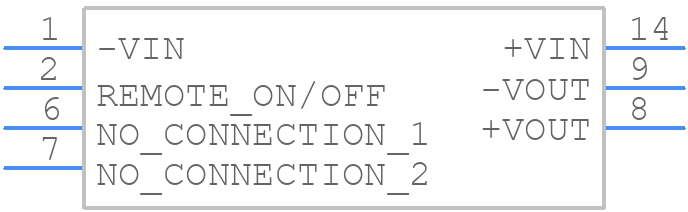

ISU0305S12 - XP POWER

ISU0305S12 Details

• Manufacturer Part Number:

  ISU0305S12

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SMD-14/7

• ECCN Code:

  EAR99

• Manufacturer:

  XP Power

• YTEOL:

  5

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EN, UKCA, UL

• Efficiency (Main Output):

  82%

• Input Voltage-Max:

  12 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  R-PDMA-G7

• Length:

  19 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  95 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.25 A

• Output Voltage-Max:

  30 V

• Output Voltage-Min:

  5 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,7/14LEAD,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  245

• Protections:

  SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.017 Vrms

• Screening Level:

  UL 62328-1

• Seated Height-Max:

  8.75 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Terminal Form:

  GULL WING

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Power Output-Max:

  3 W

• Trim/Adjustable Output:

  NO

• Width:

  14.9 mm
