Schaffner recommends a symmetrical PCB layout with a solid ground plane and a minimum of 2mm clearance around the component to ensure optimal performance and minimize electromagnetic interference.
The IT234 is designed to filter out high-frequency noise and EMI through its internal filtering components and shielding. However, additional external filtering or shielding may be required depending on the specific application and environment.
The IT234 is rated for operation from -40°C to +85°C, but derating may be necessary for high-temperature applications. Consult the datasheet and Schaffner's application notes for specific guidance.
The IT234 is designed for use in industrial and commercial applications, but it may not meet the specific requirements for safety-critical applications. Consult Schaffner's safety certifications and compliance documents to determine suitability for your specific application.
The IT234 is designed to withstand power surges and overvoltage conditions, but it is not a substitute for a dedicated surge protection device (SPD). Additional protection may be required depending on the specific application and environment.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IT234 Overview

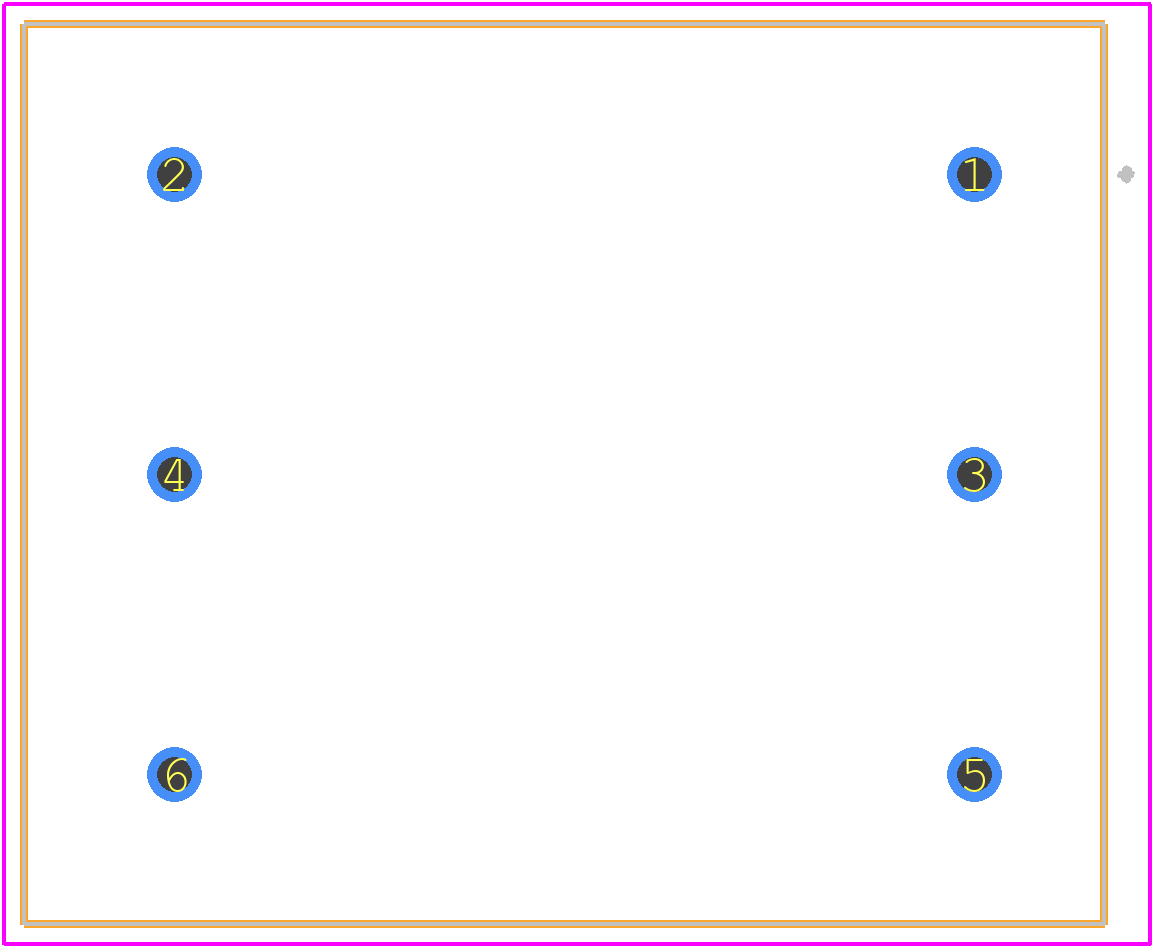

Use the download button to access the IT234 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Pulse/Datacom Transformers
