IT313 - Schaffner

Description: 1:1:1 Through Hole Telecom Transformer, 3mH

Download IT313 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

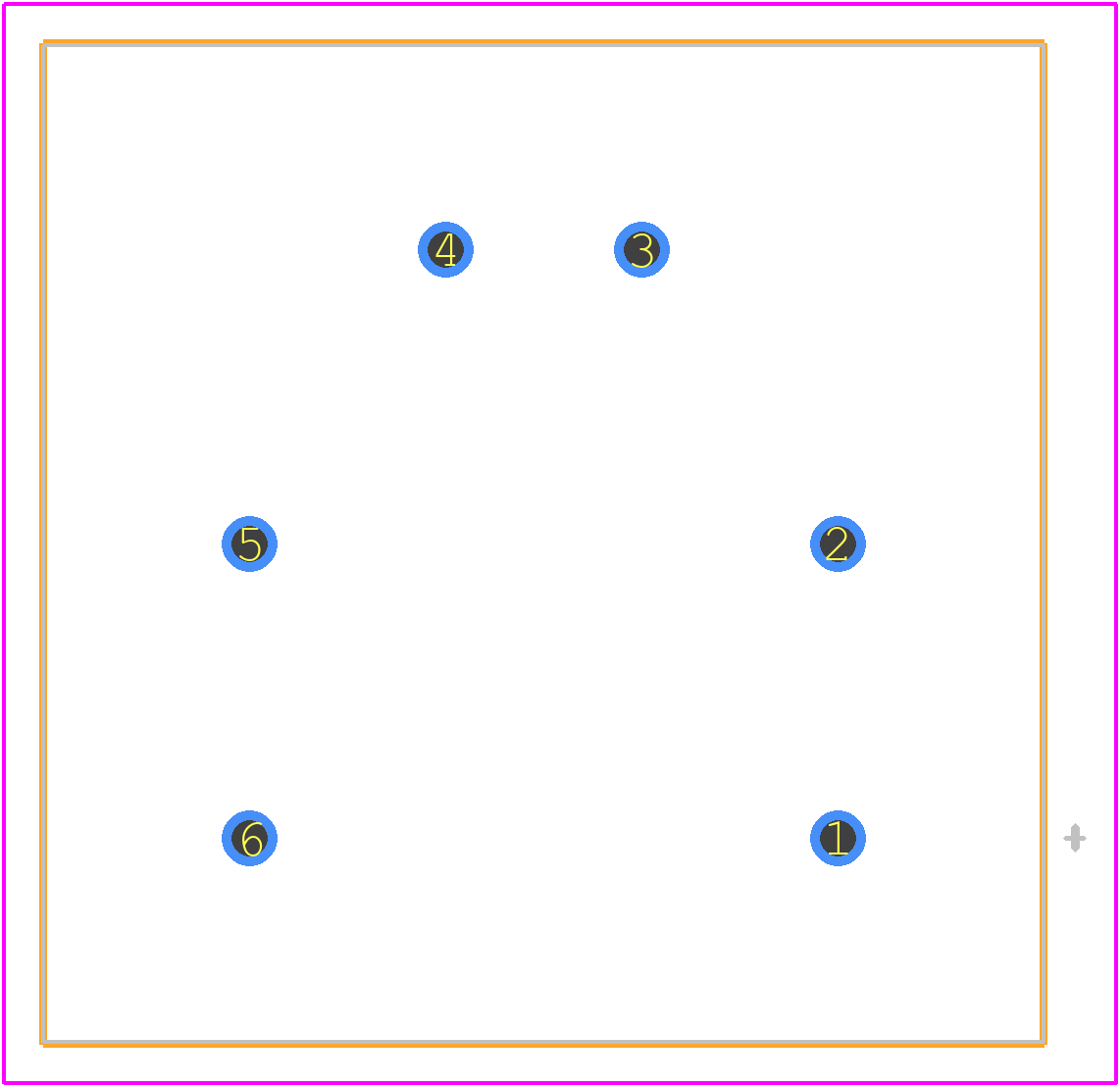

IT313 - Schaffner PCB footprint - Other - Other - IT313-1
click to zoom
3D Models
IT313 - Schaffner  - 3D model - Other - IT313-1
click to zoom

IT313 Details

  • Manufacturer Part Number:

    IT313

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Manufacturer:

    Schaffner

  • YTEOL:

    5.75

  • Application:

    GATE DRIVE

  • ET Product-Min:

    450 V-us

  • Height:

    25 mm

  • Input Voltage-Nom:

    380 V

  • Length:

    25.5 mm

  • Load Resistance:

    0.33 Ω

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Functions:

    1

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    500 kHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Primary Inductance:

    3000 µH

  • Pulse Rise Time-Max:

    600 ns

  • Surface Mount:

    NO

  • Transformer Type:

    PULSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1:1

  • Width:

    25.5 mm

IT313 Frequently Asked Questions (FAQs)

  • Schaffner recommends a symmetrical PCB layout with a solid ground plane, and the IT313 should be placed close to the power source to minimize noise and EMI.
  • Schaffner recommends a heat sink with a thermal resistance of ≤ 10 K/W, and ensuring good airflow around the component. The IT313's thermal pad should be connected to a solid ground plane.
  • The maximum allowed voltage drop across the IT313 is 2.5 V, exceeding this may affect the component's performance and lifespan.
  • Yes, the IT313 can be used in a redundant power supply configuration, but ensure that the components are properly synchronized and the system is designed to handle the increased current and heat generation.
  • Schaffner recommends checking the input voltage, output voltage, and current, as well as verifying the PCB layout and thermal management. Consult the datasheet and application notes for specific troubleshooting guidelines.
