- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for IT3M-200S-BGA(37)
- Part Number IT3M-200S-BGA(37)
- Manufacturer Hirose
- Pin Count 380
- Part Category Connector
- Package Category Other

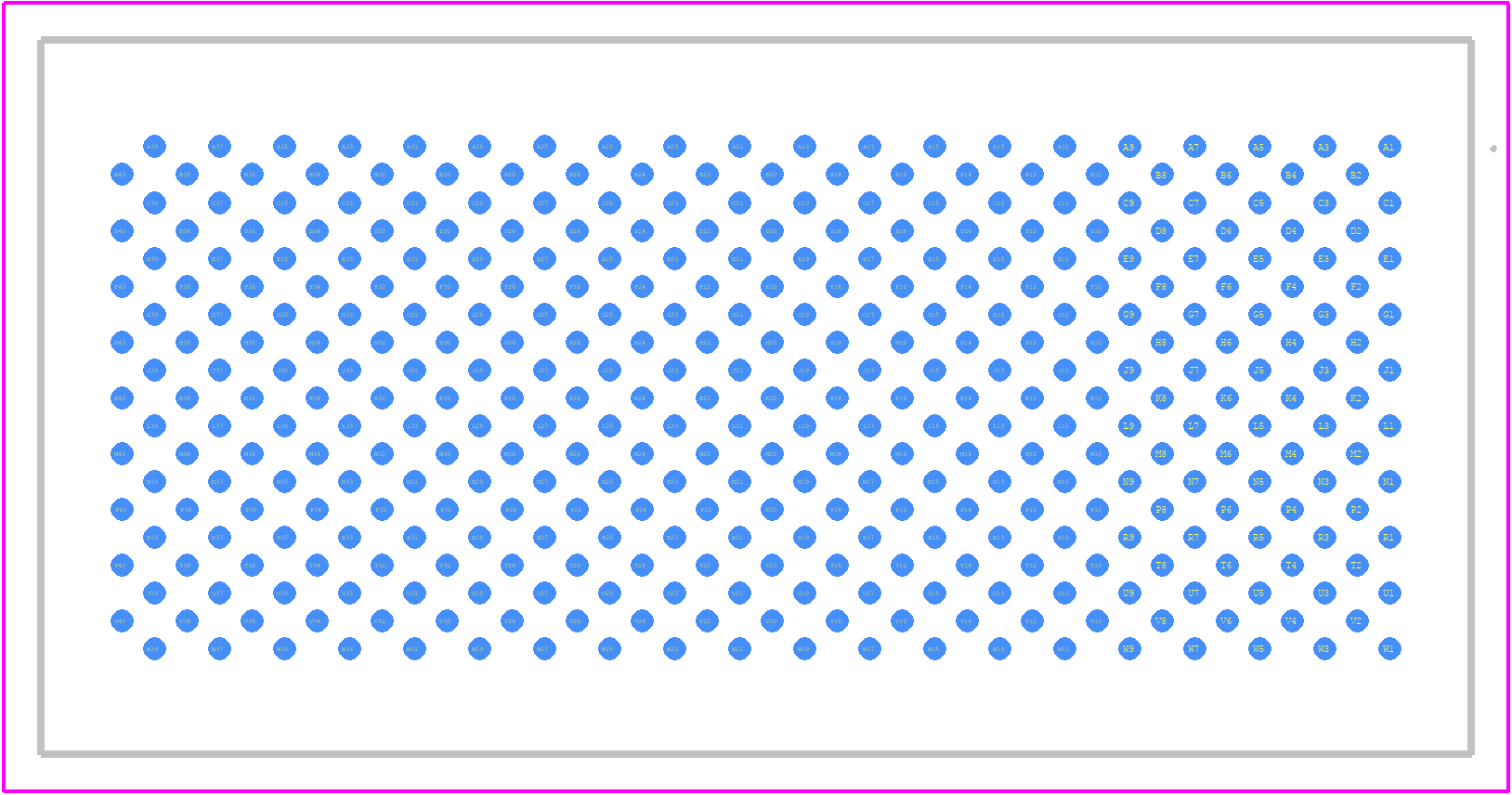

- Footprint Name Other - IT3M-200S-BGA(37)-2
- Released Date Jul 19, 2021
- Last Modified Date Nov 21, 2023 6:27 AM UTC
- Pinout / Pin List Click Here (Member Only)
IT3M-200S-BGA(37) Details
-
Manufacturer Part Number:
IT3M-200S-BGA(37)
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Hirose Electric Co Ltd
-
YTEOL:
7.3
-
Body Breadth:
0.756 inch
-
Body Depth:
0.236 inch
-
Body Length:
1.516 inch
IT3M-200S-BGA(37) Frequently Asked Questions (FAQs)
-
Hirose provides a recommended PCB layout and land pattern in their application notes or design guides, which can be found on their website or through direct contact with their technical support team.
-
To ensure reliable connections and prevent damage, follow Hirose's recommended mating and unmating procedures, use the correct insertion and extraction tools, and ensure the connector is properly seated and aligned during assembly.
-
The maximum operating temperature range for the IT3M-200S-BGA(37) connector is typically -40°C to 105°C, but this may vary depending on the specific application and environment. Consult Hirose's datasheet or technical support for specific temperature ratings.
-
The IT3M-200S-BGA(37) connector is designed for general-purpose applications, but it may not be suitable for high-vibration or harsh environments. Hirose offers specialized connectors for such applications, such as their ruggedized or vibration-resistant series. Consult Hirose's technical support to determine the best connector for your specific application.
-
Hirose recommends following their cleaning and maintenance guidelines, which typically involve using a soft brush and mild cleaning agents to remove dirt and debris. Avoid using harsh chemicals or abrasive materials that can damage the connector's contacts or housing.
Trust Checks
Community Provided
System Verified
Community Approved
IT3M-200S-BGA(37) Overview
Use the download button to access the IT3M-200S-BGA(37) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IT3M-,
or try a keyword search, such as Headers and Edge Type Connectors
