Part Image

ITA1205S - XP POWER

Description: XP POWER - ITA1205S - Isolated Board Mount DC/DC Converter, ITE, 2 Output, 1 W, 5 V, 100 mA, -5 V

Download ITA1205S Model

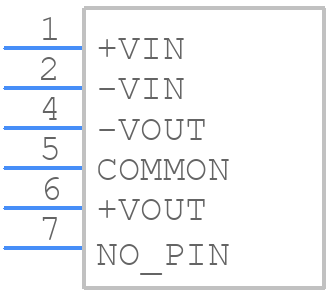

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ITA1205S - XP POWER PCB footprint - Other - Other - ITA1205S-2
click to zoom
3D Models
ITA1205S - XP POWER  - 3D model - Other - ITA1205S-2
click to zoom

ITA1205S Details

  • Manufacturer Part Number:

    ITA1205S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    13.2 V

  • Input Voltage-Min:

    10.8 V

  • Input Voltage-Nom:

    12 V

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Output Voltage-Max:

    5.75 V

  • Output Voltage-Min:

    4.25 V

  • Output Voltage-Nom:

    5 V

  • Total Power Output-Max:

    1 W

ITA1205S Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
  • To ensure reliability in high-vibration environments, XP Power recommends securing the module to the PCB using screws or adhesive, and ensuring that the PCB is properly secured to the chassis or enclosure. Additionally, the module's pins should be soldered securely to the PCB to prevent vibration-induced fatigue.
  • The maximum allowable capacitance for the output filter capacitor is 47μF. Exceeding this value may cause instability or oscillation in the output voltage.
  • Yes, the ITA1205S can be used in a redundant configuration to achieve high reliability. However, XP Power recommends consulting with their application engineers to ensure that the redundant configuration is properly designed and implemented to achieve the desired level of reliability.
  • XP Power recommends using a fuse with a rating of 2A to 5A, depending on the specific application and input voltage. The fuse should be selected to protect the module from overcurrent conditions while allowing for normal operation.
