ITB1205S footprint, schematic symbol and 3D model by XP POWER

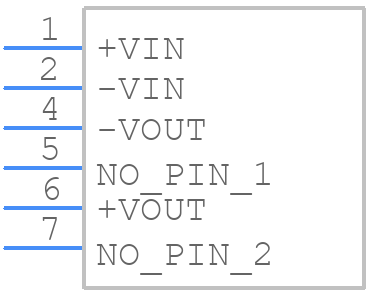

Symbol

click to zoom

PCB Footprints

ITB1205S - XP POWER PCB footprint - Other - Other - ITB1205S-2

click to zoom

3D Models

ITB1205S - XP POWER - 3D model - Other - ITB1205S-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ITB1205S
Part Number ITB1205S
Manufacturer XP POWER
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - ITB1205S-2
Released Date Sep 29, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ITB1205S Details

Manufacturer Part Number:
ITB1205S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SIP-7/6
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
0
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
EN
Efficiency (Main Output):
80%
Input Voltage-Max:
13.2 V
Input Voltage-Min:
10.8 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PSIP-T6
Length:
19.5 mm
Line Regulation-Max:
1.2%
Load Regulation-Max:
5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.2 A
Output Voltage-Max:
5.25 V
Output Voltage-Min:
4.75 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC
Package Code:
SIP
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
SHORT CIRCUIT
Ripple Voltage (Main Out):
0.02121 Vrms
Seated Height-Max:
10.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
THROUGH-HOLE
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
1 W
Trim/Adjustable Output:
NO
Width:
6 mm

ITB1205S Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area connected to the tab of the ITB1205S to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
To ensure reliable start-up, XP Power recommends a soft-start circuit to limit the inrush current during power-on. A soft-start circuit can be implemented using a NTC thermistor and a resistor in series with the input voltage.
The maximum capacitance on the output of the ITB1205S is not explicitly stated in the datasheet, but XP Power recommends limiting the output capacitance to 10uF or less to ensure stability and prevent oscillations.
Yes, the ITB1205S is designed to withstand high-vibration environments. However, XP Power recommends following the recommended PCB layout and ensuring that the module is securely fastened to the PCB to prevent mechanical stress.
XP Power recommends consulting the application notes and troubleshooting guide provided with the ITB1205S datasheet. Additionally, engineers can contact XP Power's technical support team for assistance with troubleshooting and debugging.
