ITB2405S footprint, schematic symbol and 3D model by XP POWER

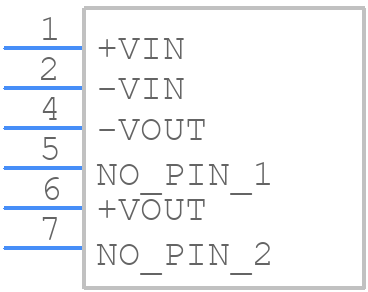

Symbol

click to zoom

PCB Footprints

ITB2405S - XP POWER PCB footprint - Other - Other - ITB2412S-2

click to zoom

3D Models

ITB2405S - XP POWER - 3D model - Other - ITB2412S-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ITB2405S
Part Number ITB2405S
Manufacturer XP POWER
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - ITB2412S-2
Released Date Apr 22, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ITB2405S Details

Manufacturer Part Number:
ITB2405S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SIP-7/6
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
0
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
EN
Efficiency (Main Output):
81%
Input Voltage-Max:
26.4 V
Input Voltage-Min:
21.6 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-PSIP-T6
Length:
19.5 mm
Line Regulation-Max:
1.2%
Load Regulation-Max:
5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.2 A
Output Voltage-Max:
5.25 V
Output Voltage-Min:
4.75 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC
Package Code:
SIP
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
SHORT CIRCUIT
Ripple Voltage (Main Out):
0.02121 Vrms
Seated Height-Max:
10.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
THROUGH-HOLE
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
1 W
Trim/Adjustable Output:
NO
Width:
6 mm

ITB2405S Frequently Asked Questions (FAQs)

The maximum capacitance load for the ITB2405S is 0.1uF to 10uF, depending on the input voltage and output voltage. It's recommended to consult with XP Power's application engineers for specific guidance.
Yes, the ITB2405S can be used in a redundant configuration to achieve high availability and reliability. However, it's essential to ensure that the units are properly synchronized and configured to avoid any potential issues.
The typical efficiency of the ITB2405S is around 85-90% depending on the input voltage, output voltage, and load conditions. Please refer to the datasheet for more detailed information.
The ITB2405S is rated for operation up to 80°C, but derating may be required for temperatures above 60°C. It's recommended to consult with XP Power's application engineers for specific guidance on high-temperature applications.
Yes, the ITB2405S can be synchronized with an external clock signal. The external clock frequency should be within the range of 400 kHz to 550 kHz, and the signal should meet the specified amplitude and rise/fall time requirements.

Trust Checks

Expert Contribution

System Verified

Community Approved

ITB2405S Overview

Use the download button to access the ITB2405S schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ITB24, or try a keyword search, such as Power Supply Modules
