ITRF-0239-D502 - SCHURTER

Description: Pulse Transformers ITRF Pulse transform THT 0.5A

Download ITRF-0239-D502 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

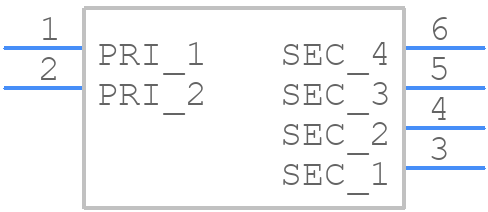

ITRF-0239-D502 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

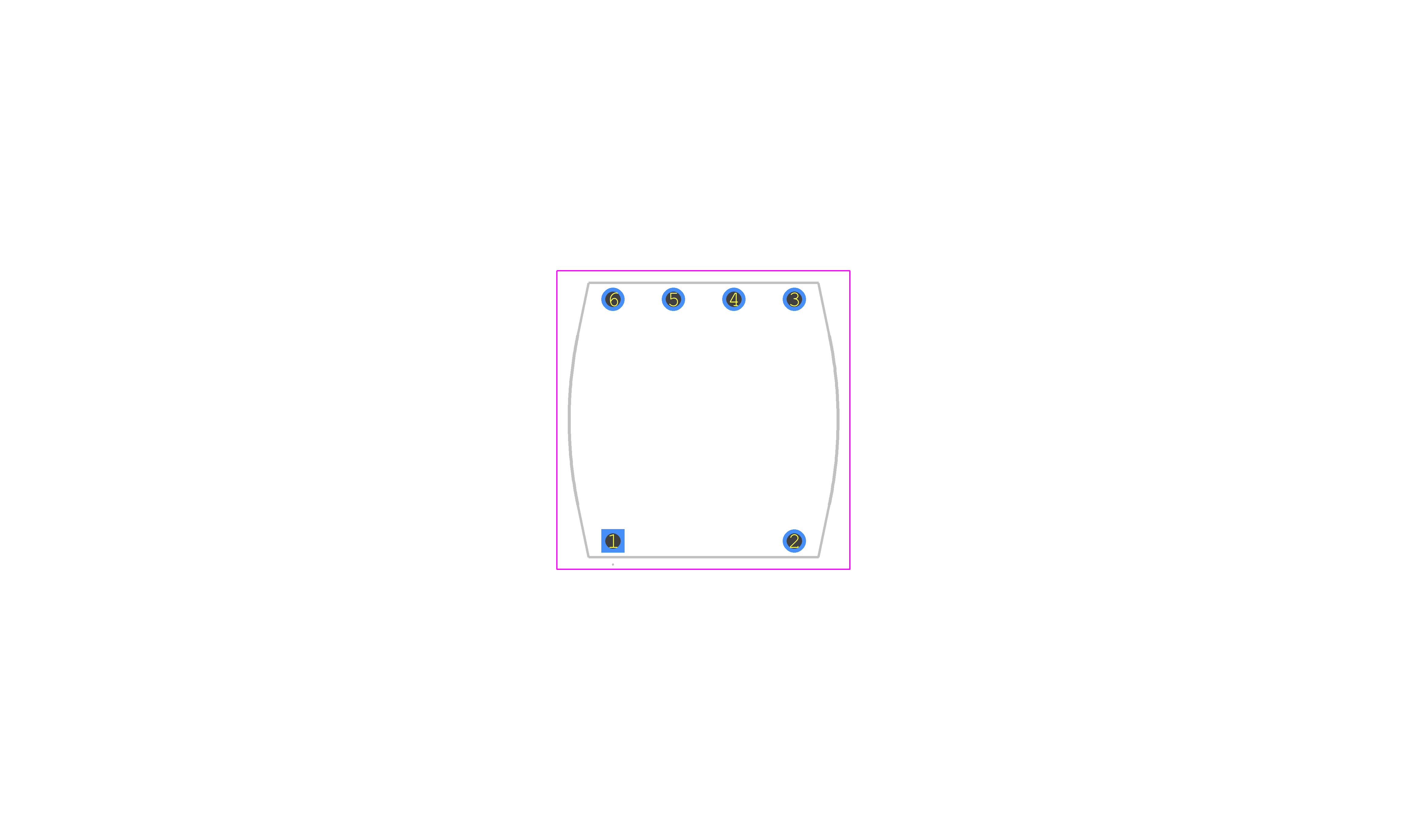

ITRF-0239-D502 - SCHURTER PCB footprint - Other - Other - ITRF-0239-D502-3
click to zoom
3D Models
ITRF-0239-D502 - SCHURTER - 3D model - Other - ITRF-0239-D502-3
click to zoom

ITRF-0239-D502 Details

  • Manufacturer Part Number:

    ITRF-0239-D502

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    40 Weeks, 3 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    6.95

  • Application:

    GENERAL PURPOSE

  • ET Product-Min:

    350 V-us

  • Height:

    13.6 mm

  • Isolation Voltage:

    3200 V

  • JESD-609 Code:

    e3

  • Length:

    22.7 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    BULK

  • Primary Inductance:

    1600 µH

  • Pulse Rise Time-Max:

    500 ns

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Transformer Type:

    PULSE TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1:1

  • Width:

    22.3 mm

ITRF-0239-D502 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and a minimum of 1mm clearance around the component is recommended for optimal performance and to minimize electromagnetic interference (EMI).
  • The ITRF-0239-D502 meets various safety certifications such as UL, ENEC, and CCC. Ensure that your application meets the required safety standards by consulting the relevant certification bodies and following their guidelines.
  • The ITRF-0239-D502 has an operating temperature range of -40°C to 125°C. However, the derating curve should be consulted to ensure the component operates within its specified limits.
  • Yes, the ITRF-0239-D502 is designed to withstand high-vibration environments. However, it's essential to follow the recommended mounting and soldering procedures to ensure the component's reliability.
  • To troubleshoot issues with the ITRF-0239-D502, consult the datasheet and application notes. Check for proper PCB layout, soldering, and component orientation. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ITRF-0239-D502 Overview

Use the download button to access the ITRF-0239-D502 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ITRF-, or try a keyword search, such as Pulse/Datacom Transformers
