A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal design and layout guidelines, and to consider the device's thermal derating. Additionally, the device should be operated within the recommended temperature range, and adequate cooling mechanisms should be implemented.
The recommended soldering conditions for the ITS4200S-SJ-D are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350-370°C. It is essential to follow these conditions to prevent damage to the device.
To troubleshoot issues with the ITS4200S-SJ-D, start by checking the power supply and input signals. Verify that the device is properly soldered and that there are no signs of physical damage. Use oscilloscopes and logic analyzers to debug the issue, and consult the datasheet and application notes for guidance.
The ITS4200S-SJ-D has built-in ESD protection, but it is still essential to follow proper ESD handling and storage procedures to prevent damage. Use ESD-safe materials, grounding straps, and wrist straps when handling the device, and store it in a protective package when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ITS4200S-SJ-D Overview

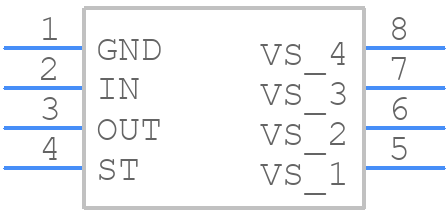

Use the download button to access the ITS4200S-SJ-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ITS42,
or try a keyword search, such as Power Management Circuits
