IW1209SA - XP POWER

Description: Isolated Module DC DC Converter 1 Output 9V 111mA 9V - 18V Input , 1W , -40°C ~ 100°C

Download IW1209SA Model

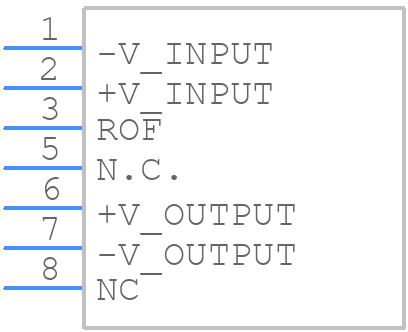

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IW1209SA - XP POWER PCB footprint - Other - Other - SIP-8_2025
click to zoom
3D Models
IW1209SA - XP POWER  - 3D model - Other - SIP-8_2025
click to zoom

IW1209SA Details

  • Manufacturer Part Number:

    IW1209SA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-5

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XSMA-T5

  • Length:

    21.85 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    9.18 V

  • Output Voltage-Min:

    8.82 V

  • Output Voltage-Nom:

    9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    11.6 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    0.999 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

IW1209SA Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • To ensure EMC, XP Power recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary to meet relevant EMC standards.
  • The derating curve for the IW1209SA can be obtained from XP Power's application notes or by contacting their technical support team. Generally, the output power should be derated by 2-3% per degree Celsius above 50°C to ensure reliable operation.
  • Yes, the IW1209SA can be used in a redundant or parallel configuration, but XP Power recommends consulting their application notes and technical support team to ensure proper design and implementation to avoid any potential issues.
  • The MTBF of the IW1209SA is typically in the range of 1-2 million hours, depending on the operating conditions and environment. XP Power provides detailed reliability data and calculations in their datasheet and application notes.
