IW1212SA - XP POWER

Description: XP POWER - IW1212SA - CONVERTER, DC/DC, 2:1I/P, 1W, 12V

Download IW1212SA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

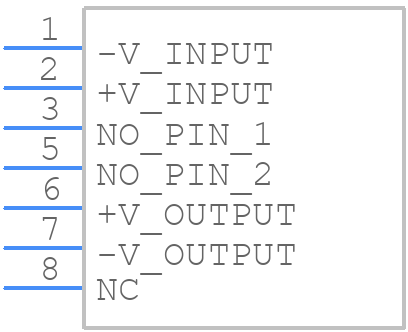

IW1212SA - XP POWER - PCB symbol
click to zoom
PCB Footprints
IW1212SA - XP POWER PCB footprint - Other - Other - IW (SIP)_2019_1
click to zoom
3D Models
IW1212SA - XP POWER - 3D model - Other - IW (SIP)_2019_1
click to zoom

IW1212SA Details

  • Manufacturer Part Number:

    IW1212SA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-5

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XSMA-T5

  • Length:

    21.85 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    12.24 V

  • Output Voltage-Min:

    11.76 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    11.6 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    0.996 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

IW1212SA Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a solid ground plane and a thermal pad connected to a heat sink or a metal plate to ensure efficient heat dissipation. A minimum of 1 oz copper thickness is recommended for the PCB.
  • To ensure EMC, XP Power recommends using a metal enclosure, keeping the DC input and output cables as short as possible, and using EMI filters or shielding on the input and output lines.
  • The derating curve for the IW1212SA is typically 2.5% per degree Celsius above 50°C. This means that for every degree above 50°C, the output power rating is reduced by 2.5%.
  • Yes, the IW1212SA can be used in a redundant or parallel configuration, but it requires careful consideration of the system design, including synchronization, current sharing, and fault tolerance. XP Power recommends consulting with their application engineers for guidance.
  • The MTBF of the IW1212SA is typically around 1.5 million hours, calculated according to MIL-HDBK-217F, Notice 2, at 40°C and 50% load.
