IW3602-30C - Renesas Electronics

Description: Optimized for use in 100V AC systems, the iW3602-30C provides an efficient, low cost solution for LED luminaires at power levels from 3W to 10W.Incorporating both Dialog's proprietary PrimAccurate™ primary-side control technology and a simplified version of Dialog's proprietary Flickerless™ technology, the iW3602-30C eliminates LED flicker and minimizes the external component count by removing the need for both the traditional opto-coupler and external compensation components, reducing solution size and cos

Download IW3602-30C Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IW3602-30C model

Email notifications will be applied after download.

Send part feedback

Symbol

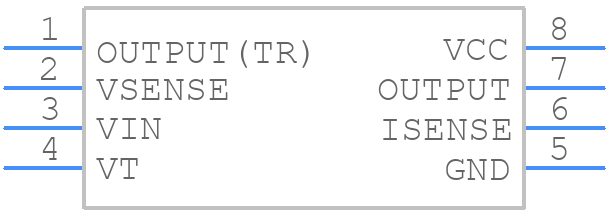

IW3602-30C - Renesas Electronics - PCB symbol

PCB Footprints

IW3602-30C - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8LEAD SMALL 6 AUGUST

3D Models

IW3602-30C - Renesas Electronics - 3D model - Small Outline Packages - 8LEAD SMALL 6 AUGUST

Datasheet Download Datasheet
Stock & Prices Price & Stock for IW3602-30C
Part Number IW3602-30C
Manufacturer Renesas Electronics
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8LEAD SMALL 6 AUGUST
Released Date Aug 6, 2022
Last Modified Date Jan 29, 2025 12:30 PM UTC
