IW3637-03A - Renesas Electronics

Description: The iW3637 high-voltage, second-stage buck LED driver provides constant current to LEDs directly from DC power supplies. It supports non-isolated buck and flyback converter topologies to post-regulate from a PFC AC/DC boost converter, minimizing low frequency output ripple current and eliminating virtually all flicker in the system, even down to 1%. A wide range of DC input voltages simplifies design by enabling the use of just one second-stage driver across any commercial lighting product portfolio.

Download IW3637-03A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

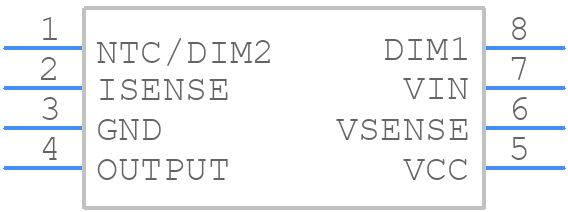

IW3637-03A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
IW3637-03A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8 LEAd soic-ren1
click to zoom
3D Models
IW3637-03A - Renesas Electronics - 3D model - Small Outline Packages - 8 LEAd soic-ren1
click to zoom

IW3637-03A Details

  • Manufacturer Part Number:

    IW3637-03A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    7.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.865 mm

  • fmax-Min:

    0.09 MHz

IW3637-03A Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4393EJ0100) which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
  • The IW3637-03A has a built-in overcurrent protection feature. To implement it, connect the OCP pin to a resistor divider network that sets the overcurrent threshold. The datasheet provides a calculation formula to determine the resistor values.
  • Renesas recommends using a low-ESR ceramic capacitor (X5R or X7R dielectric) with a value of 4.7uF to 10uF for the input capacitor. This ensures stable operation and minimizes voltage ripple.
  • The output voltage can be adjusted by connecting a resistor divider network between the VOUT pin and the GND pin. The datasheet provides a formula to calculate the resistor values for the desired output voltage.
  • While the datasheet specifies an operating temperature range of -40°C to 105°C, Renesas recommends keeping the ambient temperature below 85°C for reliable long-term operation.
