IWR1443FQAGABLR - Texas Instruments

Description: Single-chip 76-GHz to 81-GHz mmWave sensor integrating MCU and hardware accelerator

Download IWR1443FQAGABLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IWR1443FQAGABLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

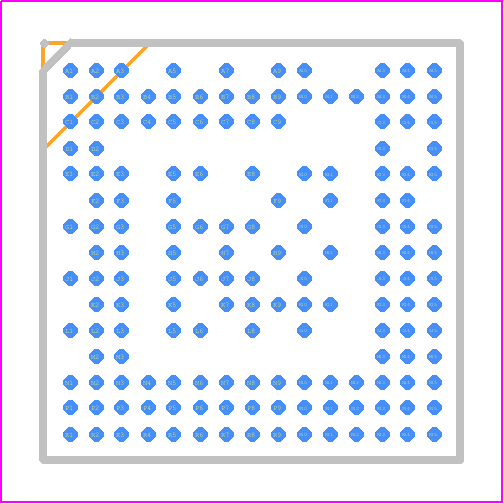

IWR1443FQAGABLR - Texas Instruments PCB footprint - BGA - BGA - ABL0161A
click to zoom
3D Models
IWR1443FQAGABLR - Texas Instruments - 3D model - BGA - ABL0161A
click to zoom

IWR1443FQAGABLR Details

  • Manufacturer Part Number:

    IWR1443FQAGABLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines, South Korea

  • ECCN Code:

    5A991.B.6.B

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Frequency range : 76 - 81 GHz

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PBGA-B161

  • JESD-609 Code:

    e1

  • Length:

    10.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    161

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.17 mm

  • Supply Voltage-Max (Vsup):

    1.32 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    RFCMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.4 mm

IWR1443FQAGABLR Frequently Asked Questions (FAQs)

  • The maximum range of the IWR1443FQAGABLR is approximately 100 meters, depending on the environment and the type of objects being detected.
  • The IWR1443FQAGABLR uses a combination of frequency modulation and pulse compression to mitigate multipath interference. Additionally, the device's built-in signal processing algorithms can help to reduce the effects of multipath interference.
  • Yes, the IWR1443FQAGABLR can be used for gesture recognition applications. The device's high-resolution range and velocity data can be used to detect and track the movement of objects, allowing for the recognition of specific gestures.
  • The IWR1443FQAGABLR has built-in noise reduction and interference mitigation techniques, including adaptive thresholding and filtering. Additionally, the device's signal processing algorithms can help to reduce the effects of noise and interference.
  • Yes, the IWR1443FQAGABLR can be used in outdoor environments, but it may require additional protection from the elements. The device is designed to operate in a wide range of temperatures and humidity levels, but it may not be suitable for extreme weather conditions.
