IWR6243ABGABL - Texas Instruments

Description: 57-GHz to 64-GHz industrial high-performance MMIC

Download IWR6243ABGABL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

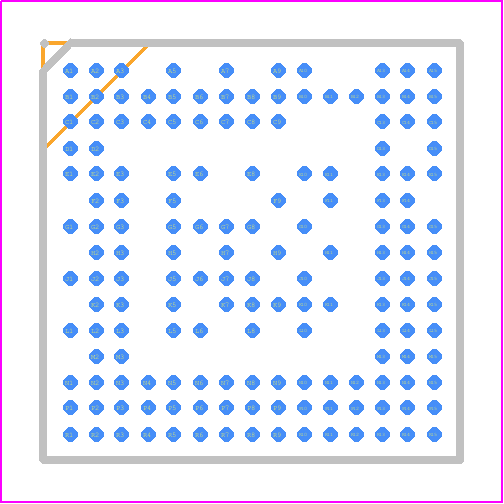

IWR6243ABGABL - Texas Instruments PCB footprint - BGA - BGA - ABL0161A
click to zoom
3D Models
IWR6243ABGABL - Texas Instruments  - 3D model - BGA - ABL0161A
click to zoom

IWR6243ABGABL Details

  • Manufacturer Part Number:

    IWR6243ABGABL

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B.6.B

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Body Breadth:

    10.4 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    10.4 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    161

  • Operating Current-Max:

    850 mA

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    CSI-2; I2C; SPI

  • Output Range:

    0.45-1.35V

  • Output Type:

    DIGITAL

  • Package Shape/Style:

    RECTANGULAR

  • Packing Method:

    TRAY

  • Sensors/Transducers Type:

    RADAR SENSOR IC

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.14 V

  • Surface Mount:

    YES

  • Technology:

    RFCMOS; 45 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Termination Type:

    SOLDER
