IWR6843AQGABLR - Texas Instruments

Description: RF System on a Chip - SoC Single-chip 60-GHz to 64-GHz intelligent mmWave sensor integrating processing capability

Download IWR6843AQGABLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IWR6843AQGABLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

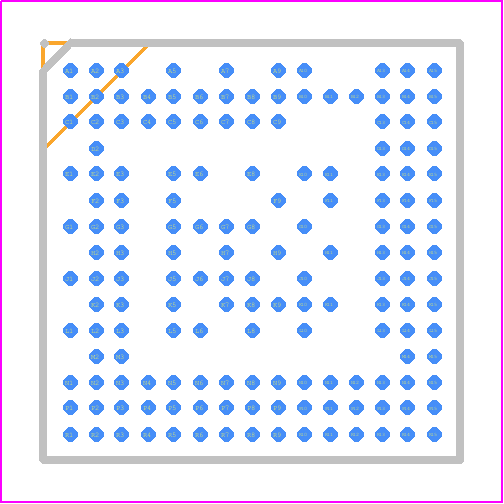

IWR6843AQGABLR - Texas Instruments PCB footprint - BGA - BGA - ABL0161B
click to zoom
3D Models
IWR6843AQGABLR - Texas Instruments - 3D model - BGA - ABL0161B
click to zoom

IWR6843AQGABLR Details

  • Manufacturer Part Number:

    IWR6843AQGABLR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines, South Korea

  • ECCN Code:

    5A991.B.6.B

  • HTS Code:

    8542.31.00.75

  • Date Of Intro:

    2020-05-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Frequency range : 60 - 64 GHz

  • Body Breadth:

    10.4 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    10.4 mm

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    161

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.45-1.35V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    BGA161,15X15,26

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    MMWAVE RADAR SENSOR MODULE

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.14 V

  • Surface Mount:

    YES

  • Technology:

    RFCMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)
